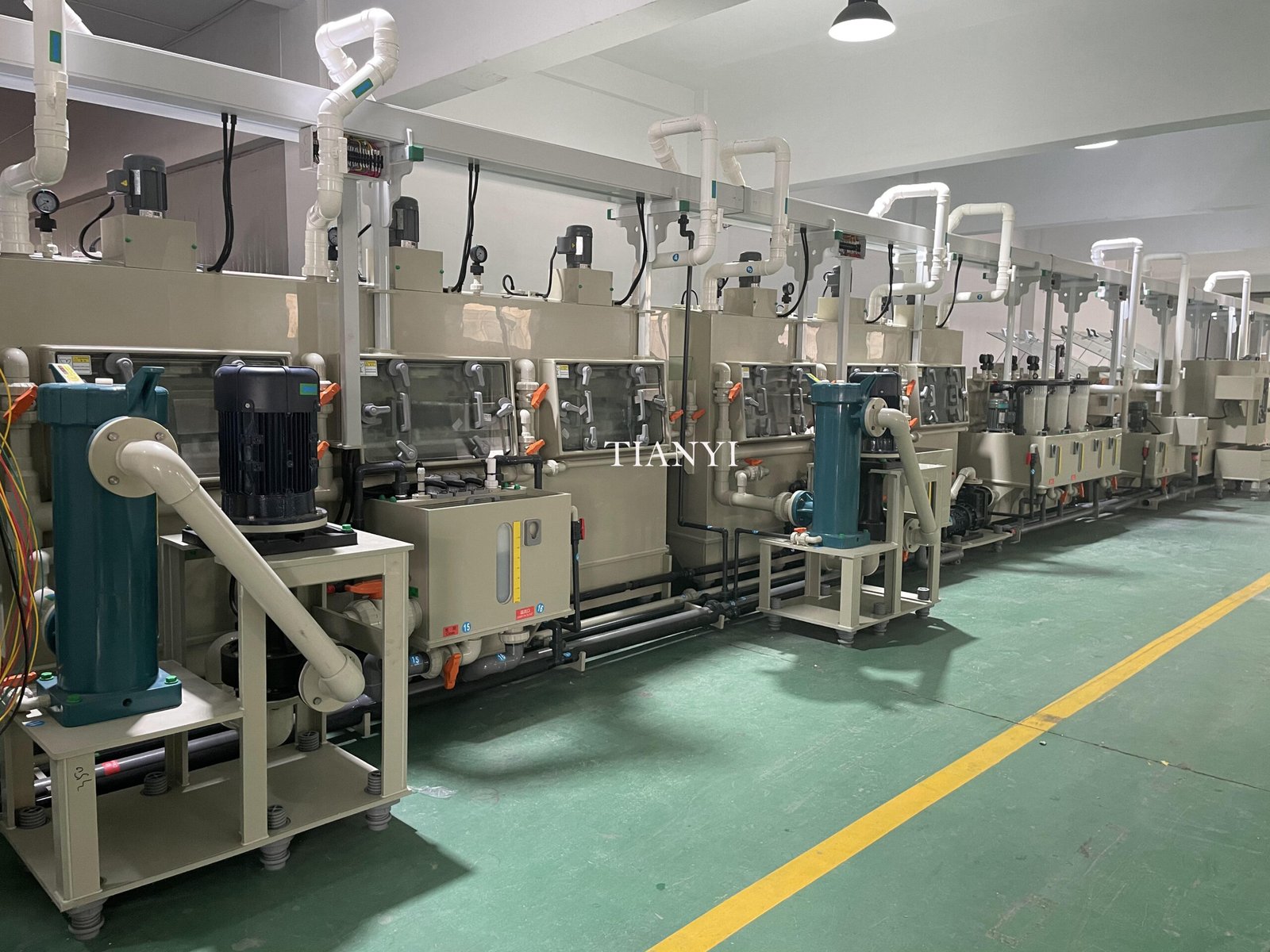

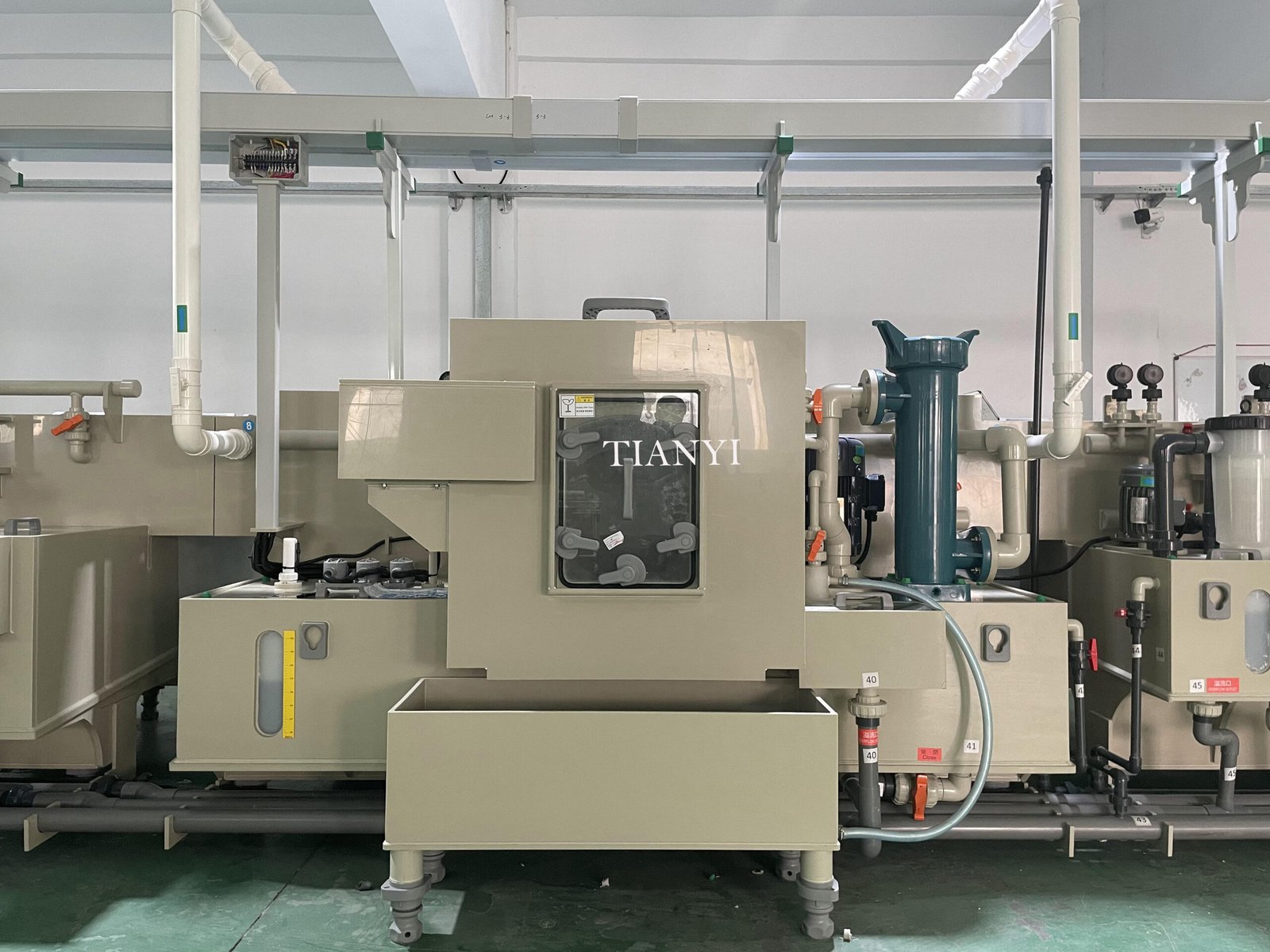

COPPER ETCHING AND STRIPPING MACHINE
Specifications:
- Etching machine process includes: Loading → Etching → Recycle washing (1/2/3) → DI water rinsing → Squeezing →Inspection→Soak →Stripping→Recycle washing(4/5/6/7)→DI water rinsing → Squeezing →Cold blower → Hot air drying →
- Dimension: L18,200xW2400xH2460MM
- Effective working width: 750mm
- Etching heating/cooling: Electric heating with cooling coil
- Etching pump: 7.5HP 6SET double side Etching
- Total power consumption: 117.3KW
- Guarantee: 1year
- Optional: Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Description
COPPER ETCHING AND STRIPPING MACHINE
Etching machine is waiting for you.
Effective etching spraying length is 6 meter, constructed with a corrosion-resistant body and advanced PP material. It could achieve 5-6meter/min working speed for copper etching production.
Equipped with an acid regeneration system to ensure precise concentration control and stable performance for batch etching production
