Three Core Product Lines
Specialized chemical etching and wet processing equipment engineered for precision, reliability,
and global delivery.

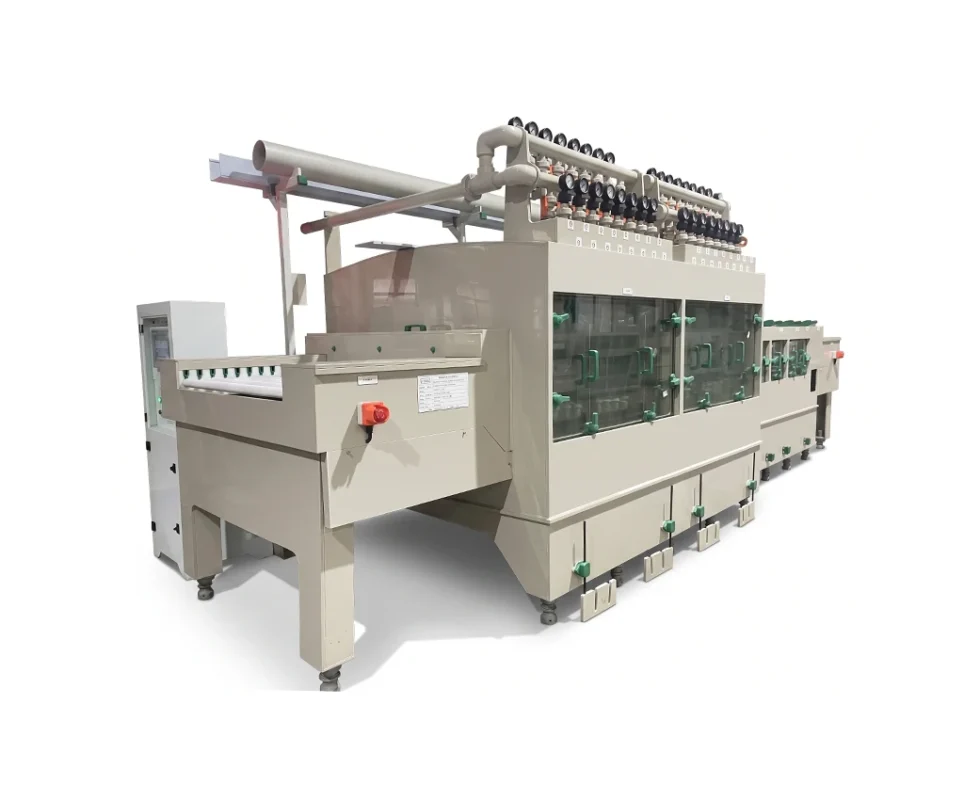

Metal Etching Equipment
- Stainless Steel Etching
- Aluminum Etching
- Copper Etching
- Developing & Stripping

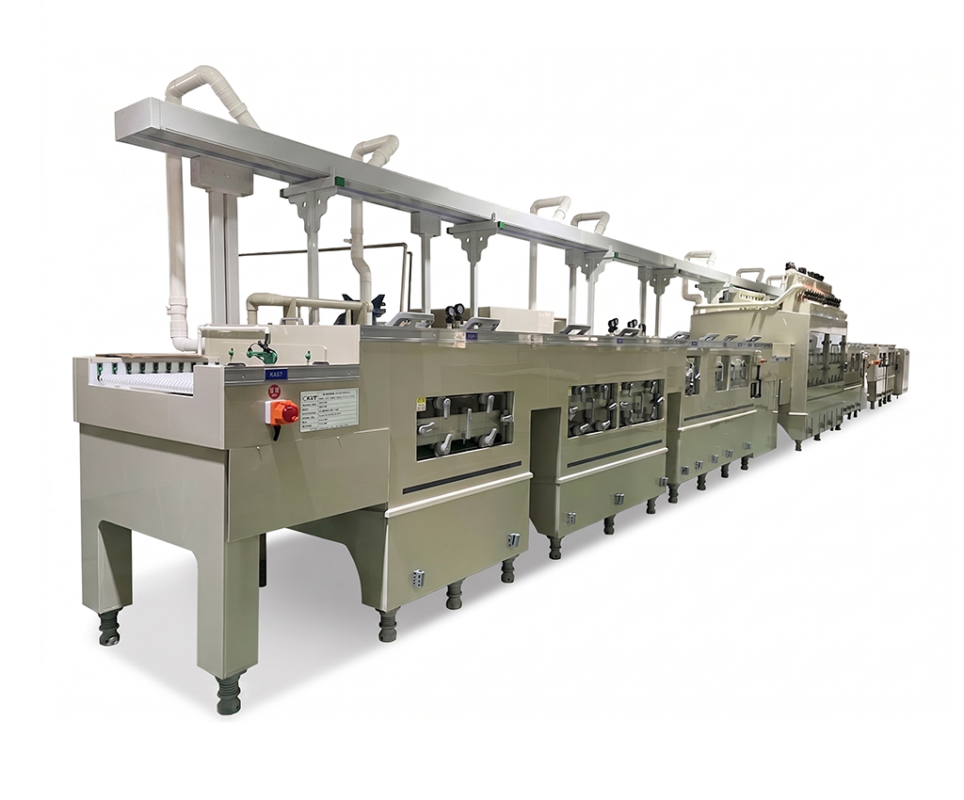

PCB Etching & Processing
- Etching Lines
- Stripping Systems
- Developing Equipment
- Complete Production Lines
Explore Categories
Purchase directly from manufacturers. We supply a full range of automated PCB production equipment.
Latest News & Trends.
Stay updated with our latest technology breakthroughs and company announcements.

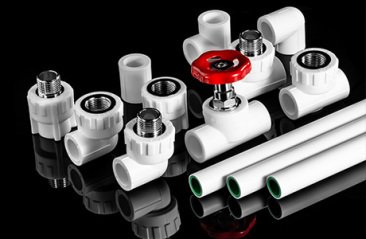

Advantages Of PPR Water Supply Pipes
Application Fields Of PE Water Supply Pipes

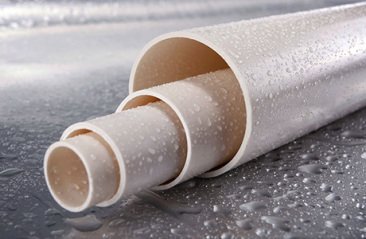

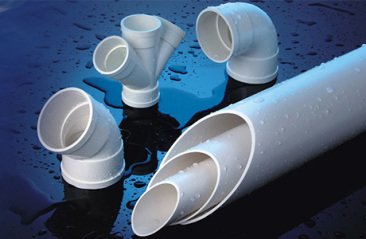

PVC-U Water Supply Pipes
TIANYI FAQ
Who are Masteretch?
TIANYI are a manufacturer of chemical etching equipment.
We serve a wide range of industries including
- Signs, Labels and Nameplates
- Chemical Milling
- Electronics
- Printing
Chemical etching machines harnesses the corrosive reaction between the chemical and the metal and amplify the effect by heating the solution and spraying at high pressure.
What is chemical etching?
Chemical etching is a multistage photo-lithographic process. The metal is first cleaned and then laminated with a UV sensitive photoresist film. A photo tool containing the desired artwork is placed on top of the laminated material. It is then exposed to UV light.
The UV light passes through the clear areas of the photo tool hardening the laminated film. The sheet is then chemically developed to wash away the unexposed photoresist leaving a very precise mask of hardened photoresist behind.
The material is placed in the etching machine where is it sprayed with a high pressure temperature regulated chemical spray (most commonly Ferric Chloride). The solution etches away the unprotected portions of the material to reproduce the desired image.
The chemical spray dissolves the material atom by atom for a smooth burr free finish. In the final stage the photoresist is stripped away leaving the material ready for any post etching processes required.
Other resist methods commonly used in metal etching include screen printed resists (particularly in high volume nameplate production) Laser engravable resist, Vinyl resist, laser direct imaging and more recently direct inkjet printed resists.
What is chemical milling?
Chemical milling is a high precision process used to produce complex parts and components out of sheet metal. In the chemical milling process the artwork is applied on both sides of the material and is etched from both sides to cut all the way through the material.
It is a versatile manufacturing technique that retains hardness, temper, magnetic permeability, and other qualities without causing excessive stress on the material. Tooling costs are very low and design changes can easily be incorporated.
As an alternative to “conventional” methods, such as laser, water jet, stamping of wire EDM, chemical milling provides an accurate and economical solution for many precision metal applications.
What materials can be chemically etched?
Most metals can be etched when paired with the correct etchant. Our customers use our equipment to etch a wide variety of materials including:
- Stainless steel
- Brass
- Copper
- Bronze
- Aluminium
- Titanium
- Nitinol
- Molybdenum
- Zinc
- Nickel
Contact us to discuss your etching requirements.
What etching equipment do Masteretch manufacture?

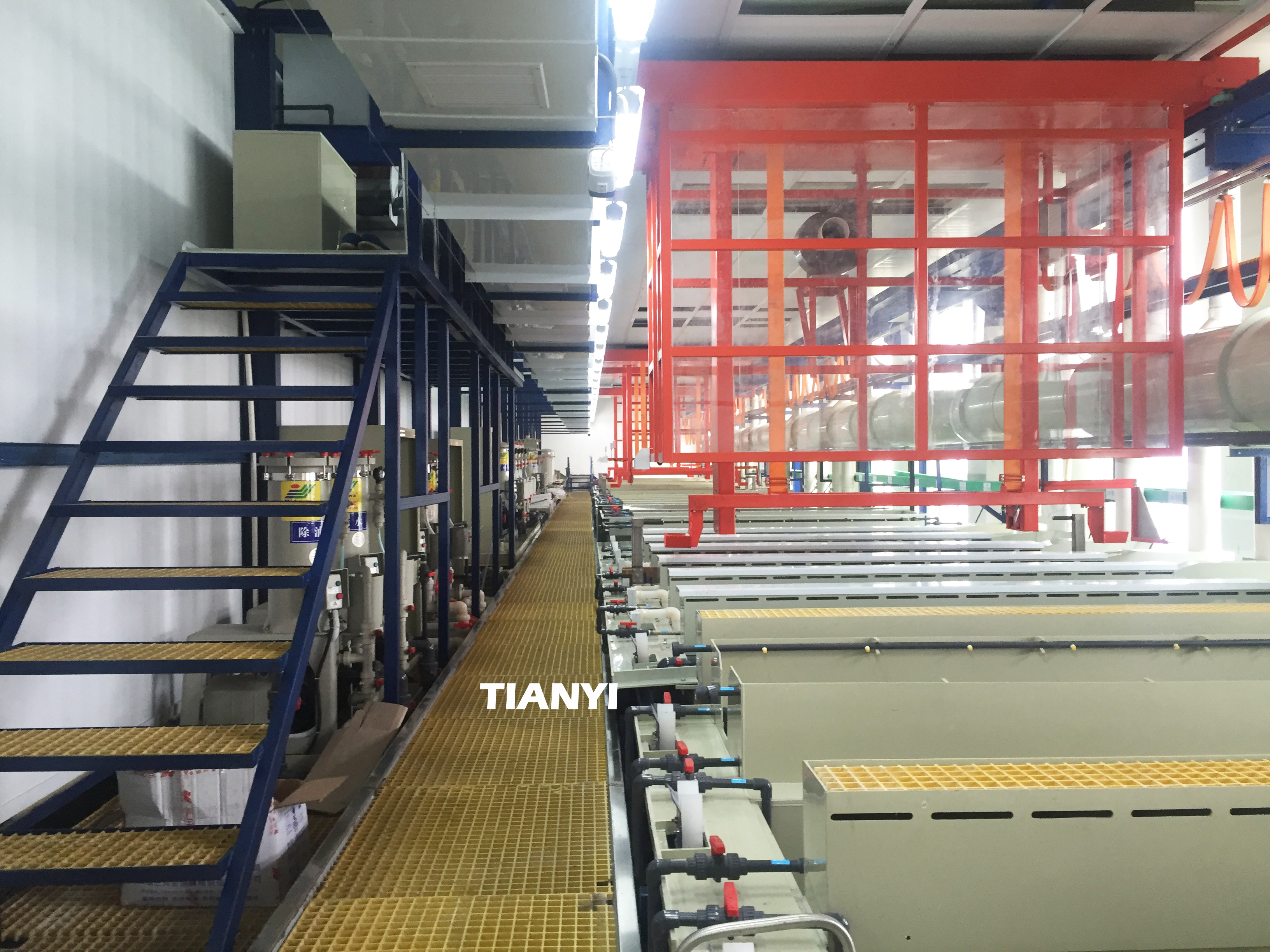

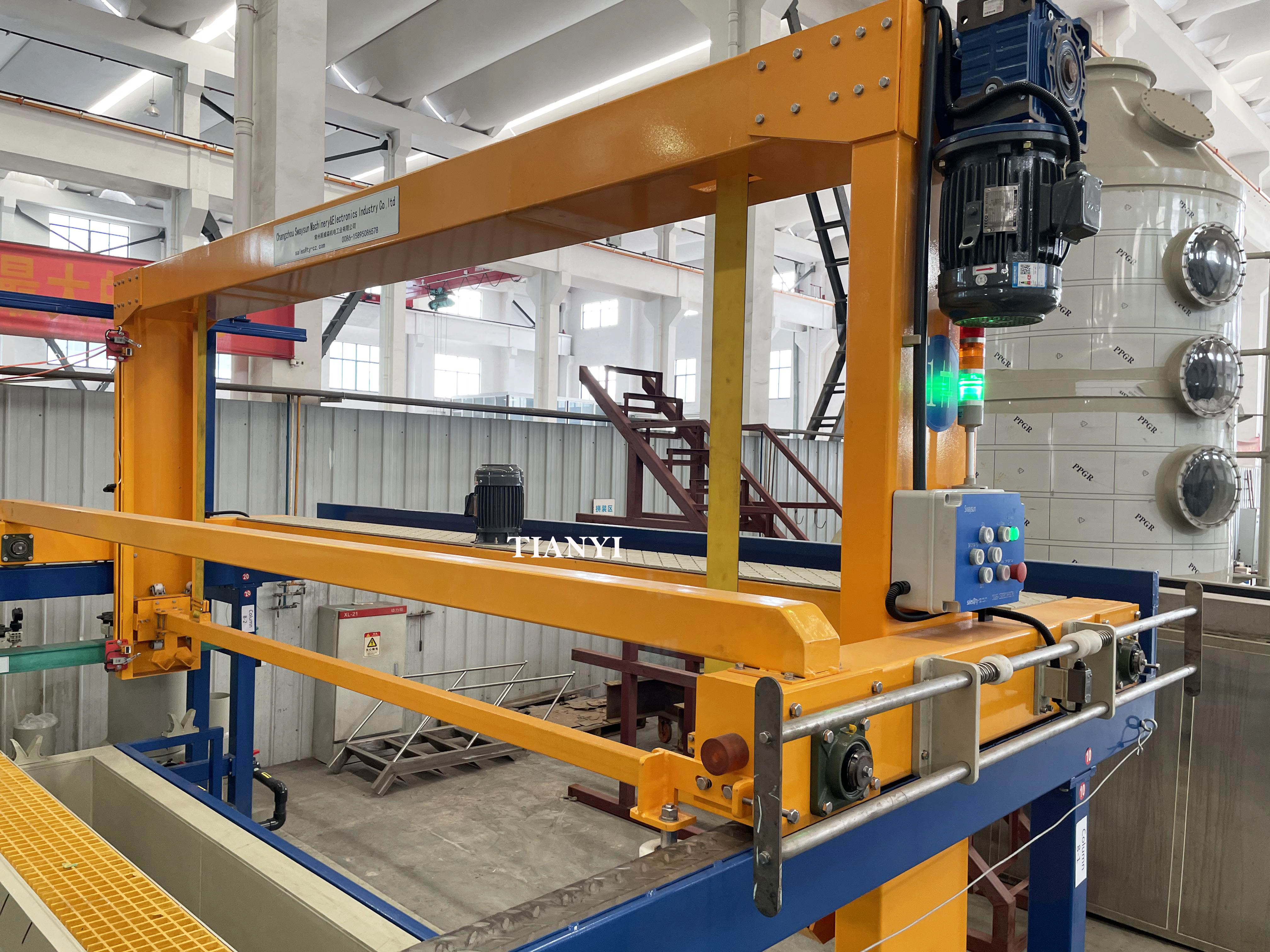

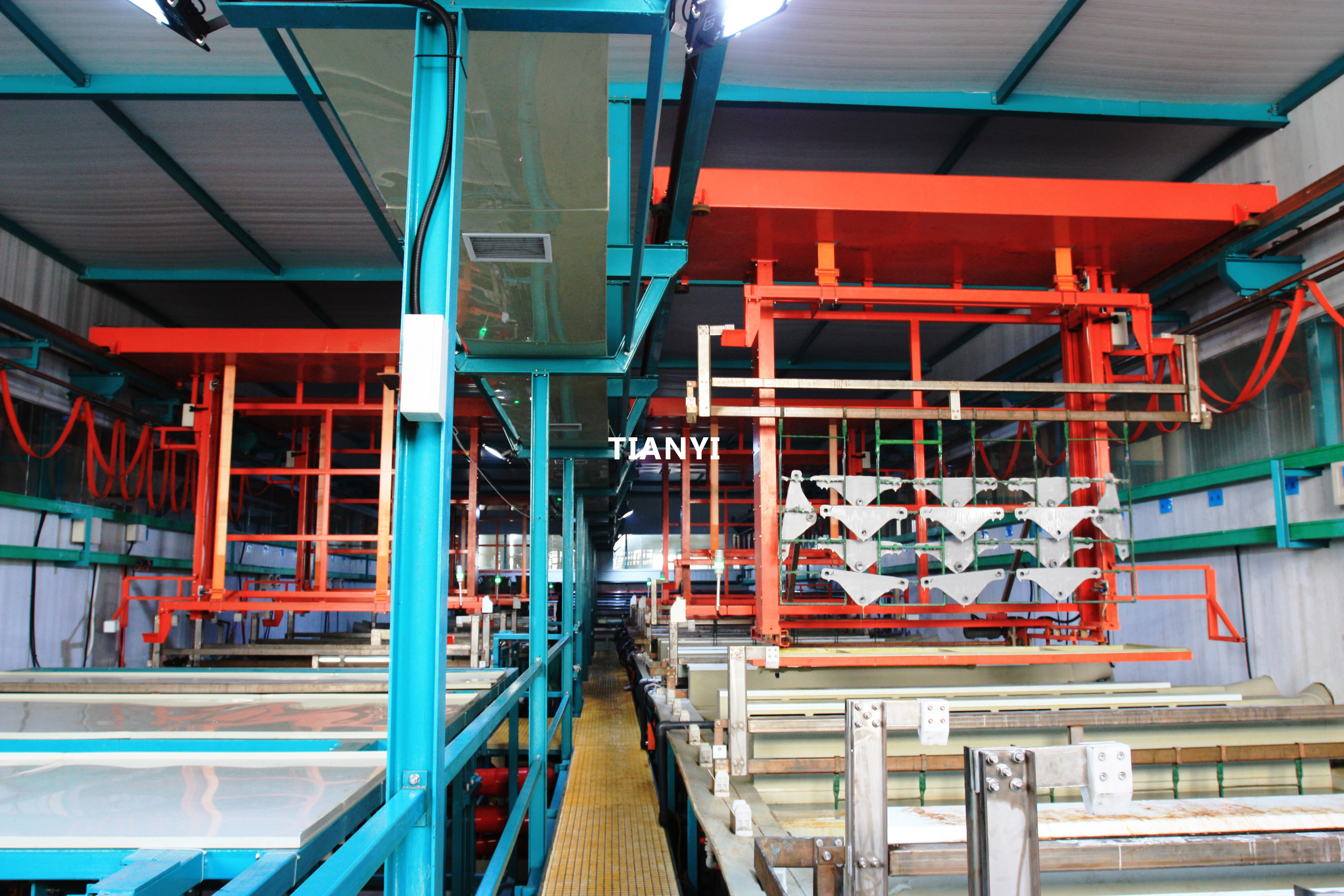

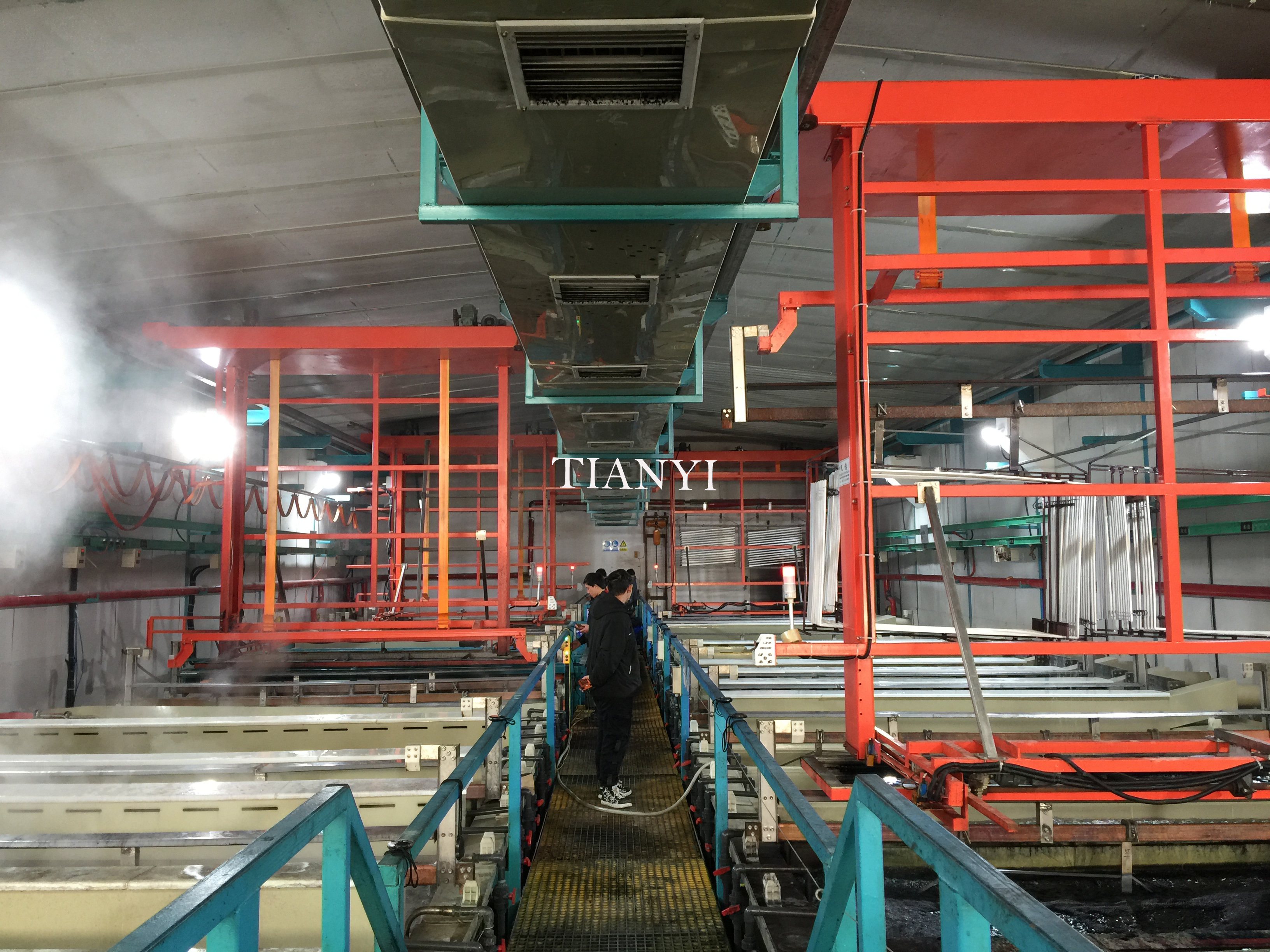

TIANYI manufacture a wide range of chemical etching equipment ranging from benchtop etching machines for research and development through to fully automated high volume photochemical milling lines. Standard models include:
- Masteretch Model 360
- Masteretch Model 635
- Masteretch 650 Series
- Masteretch 750 Series
We also able to design and build custom chemical etching equipment to help our customers overcome some of the toughest challenges in the etching industy. Custom machine built by Masteretch include:
- Wide format etching machines
- Titanium etching machines
- cabinet etching machines
- high volume phtochemical milling lines
- lathe etching machines
