VERTICAL ULTRASONIC CLEANING MACHINE
Specifications:
- Cleaningmachine process includes: Loading → Micro etching→ Recycle water washing(1/2) → DI water washing 1→Acid washing→ Recycle water washing(3/4) → DI water washing 2→Post dip→ Recycle water washing(5/6) → DI water washing 3→Squeezing→Cold blower → Hot air drying →
- Dimension: L9315xW1900xH2500MM
- Effective working width: 740mm
- Developing heating/cooling: Electric heating
- Micro etching pump: 5HP 2SET double side Spraying
- Total power consumption: 45.05KW
- Guarantee: 1year
- Optional: waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Description

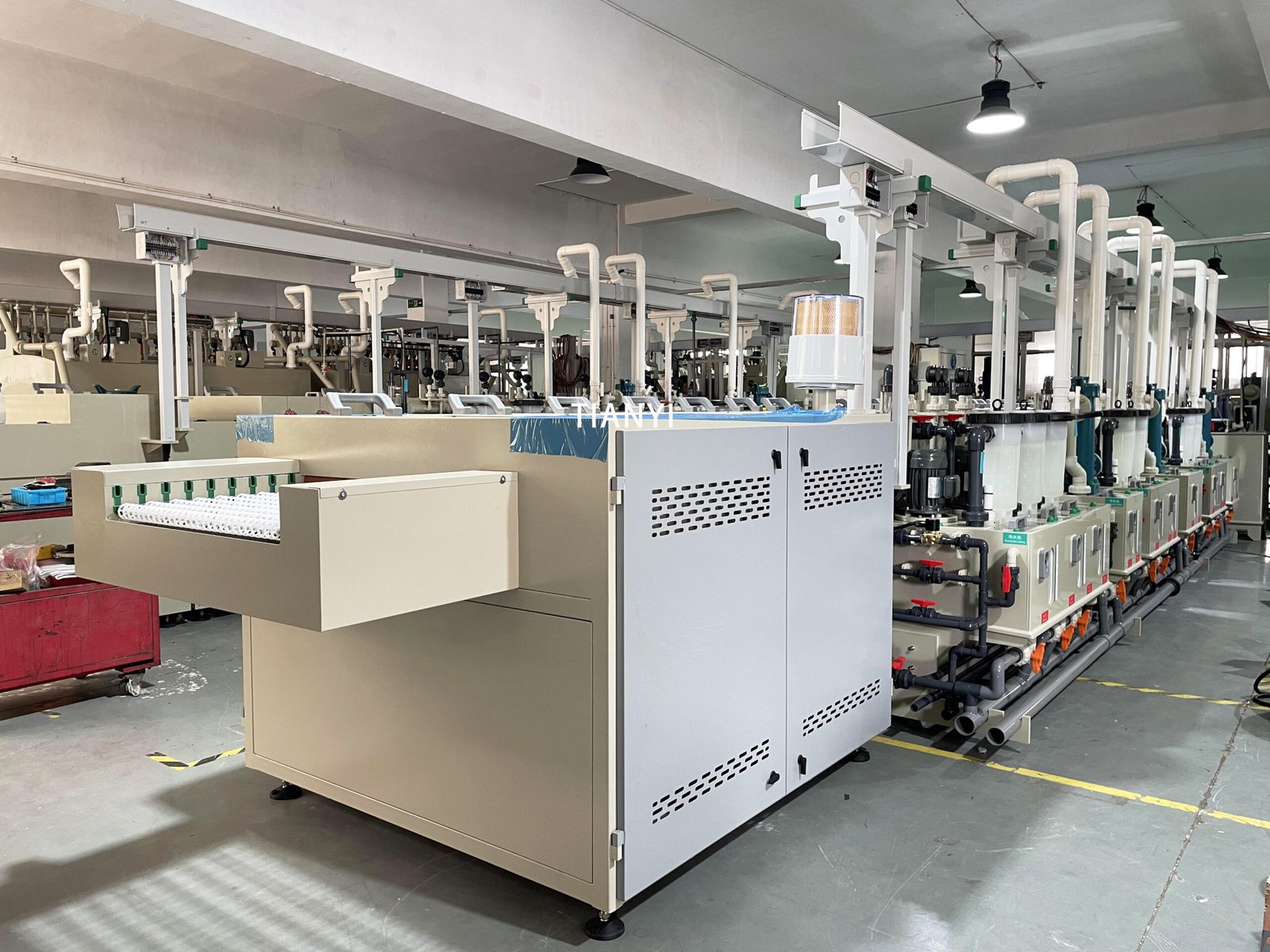

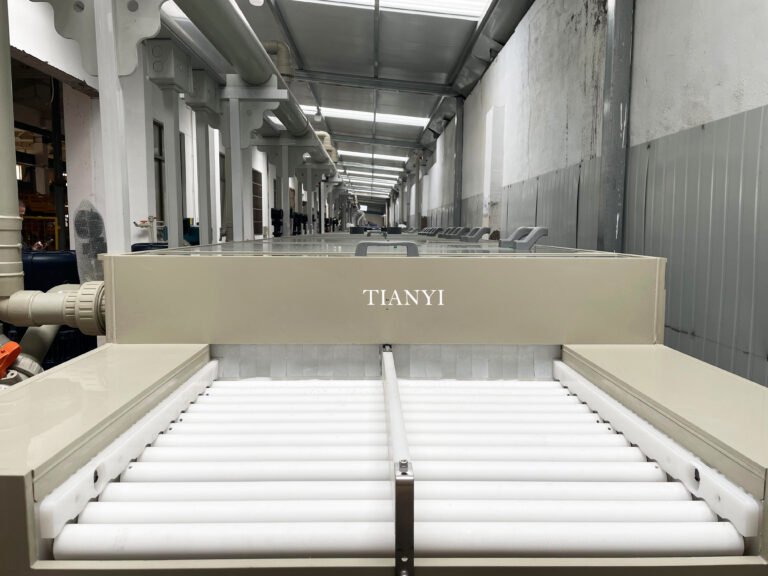

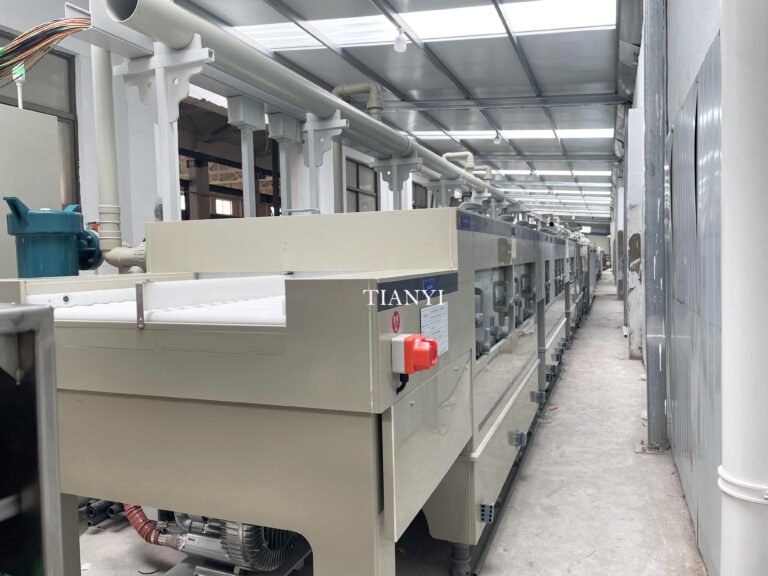

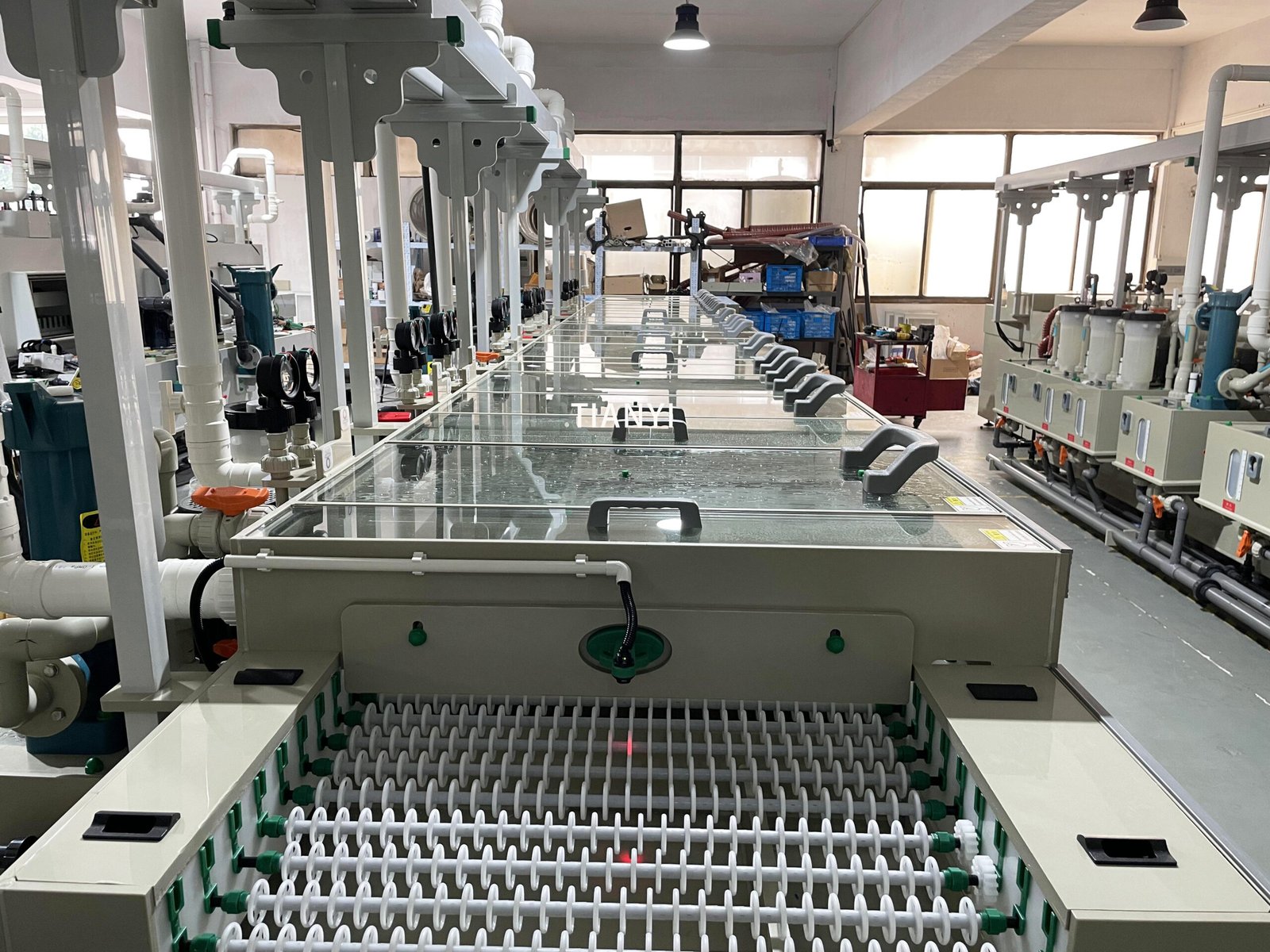

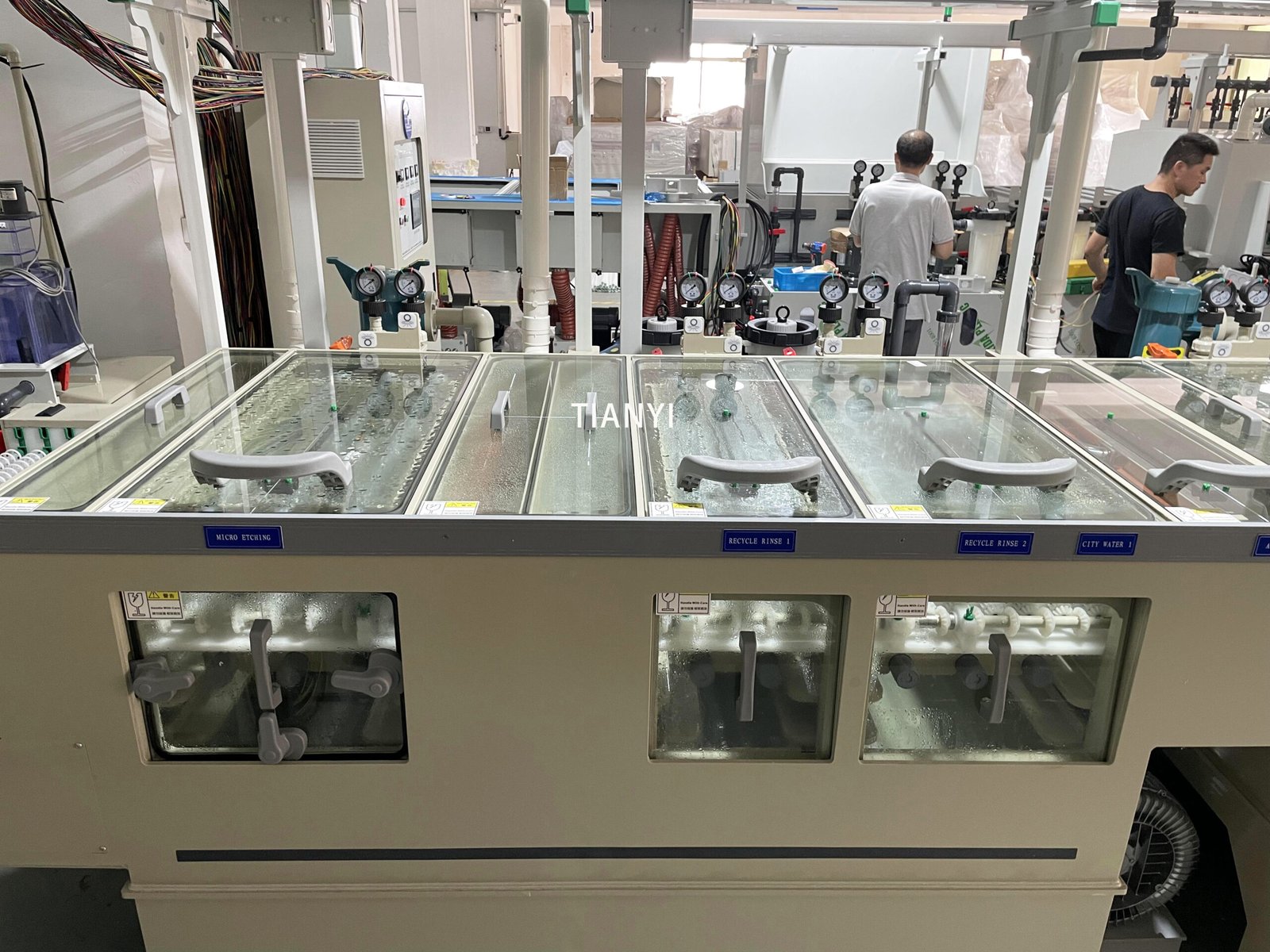

Vertical Ultrasonic cleaning machine
Cleaning machine is waiting for you.
Industrial metal chemical clean line with horizontal structure, designed for continuous cleaning of metal or electronic parts.
Whole machine made of PP sheet, cold hot air drying made of stainless steel frame.
