Description

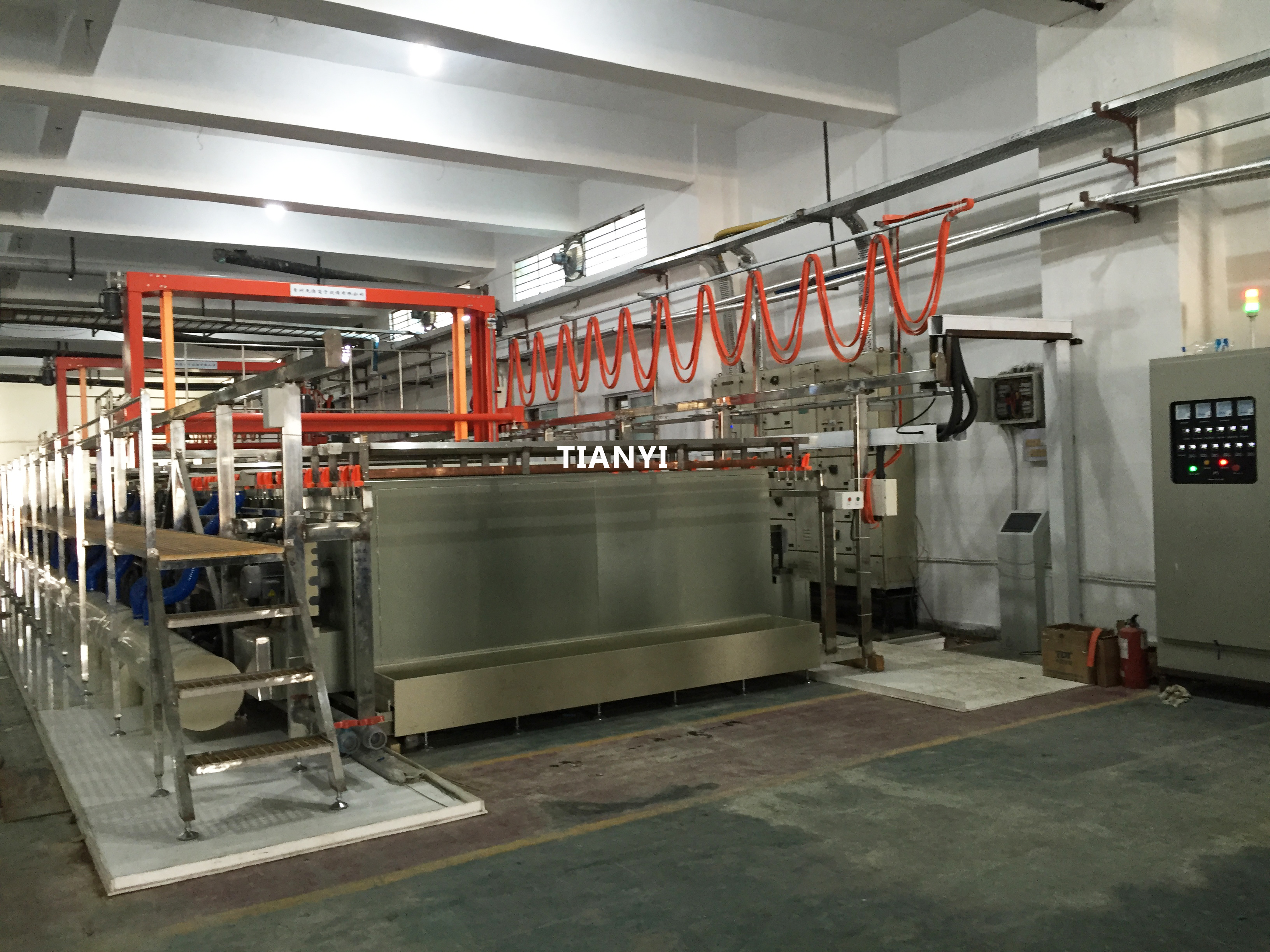

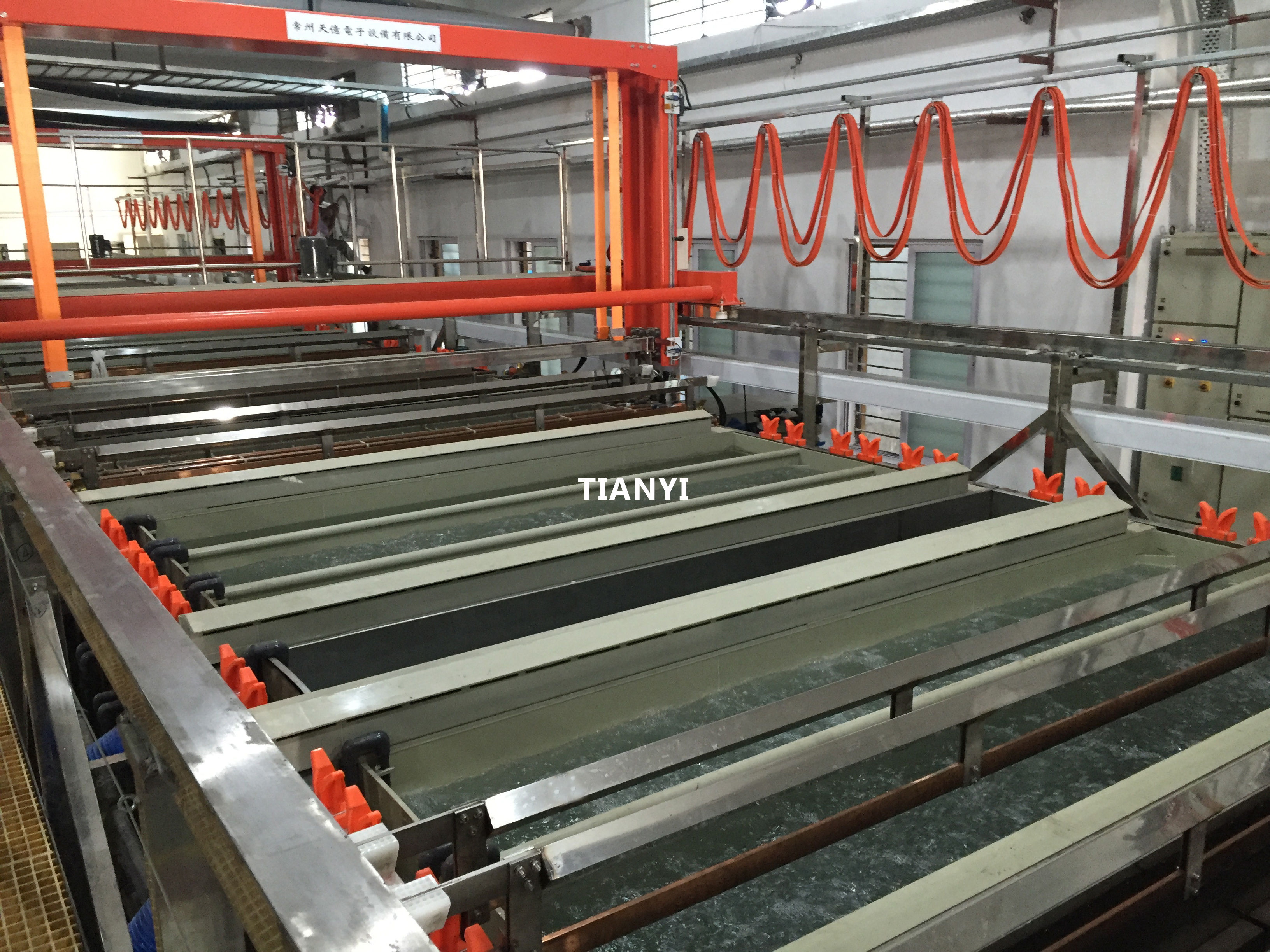

PCB copper plating machine is waiting for you.
PCB copper plating machine is suitable for both first copper (via filling) and pattern copper plating processes(surface build-up). It is an automated line that uses electrolytic copper baths, rectifiers, filters, and agitation systems to deposit uniform copper layers on PCB surfaces and through holes.
Machine Construction:
1. Frame: Made of SS 304 stainless steel for strength and corrosion resistance.
2. Tanks: PP material (12mm/15mm/20mm thick) with tube reinforcement for extra durability.
3. Oscillation System: Ensures even processing and better chemical exchange.
4. Air Agitation System: Provides uniform solution circulation and stable operation.
5. Transport System: Two set PLC-controlled transporters for precise and automatic movement.
Specifications
Copper plating machine process includes Loading → Soak → Film stripping → Recycle washing (1/2/3) → DI water rinsing 1 → Squeezing → Inspection →Vacuum Etching → Recycle washing (4/5/6) → DI water rinsing 2 → Squeezing → Inspection → Tin stripping → Recyclewashing(7/8/9) → DI water rinsing → Squeezing → Cold blower → Hot air drying → Unloading
Dimension L15,160xW2750xH4000MM
Tanks dimension L1800xW860xH1180 mm
Copper heating/cooling Electric heating with cooling coil
Copper process time 60-75minuts
Total power consumption 95KW
Guarantee 1year
Optional Rectifier, Filter, Auto regeneration system; Coolingchiller; waste gas scrubber(acid fume treatment)
