PCB FINAL CLEANING MACHINE
Specifications:
- PCB cleaningmachine process includes: Loading →Recycle water washing(1/2) → Hot rinse →DI water washing→Brushing →Recycle water washing 3 →High pressure rinse →DI water washing→Squeezing → Cold blower → Hot air drying →
- Dimension: L7793xW2100xH2240MM
- Effective working width: 740mm
- Brushing heating/cooling: None
- Brushing motor: 1.1KW 2SET
- Total power consumption: 26.5KW
- Guarantee: 1year
- Optional: Auto loader and Unloader
+8615895086578
Mobile
sales@ty-cz.com
Description

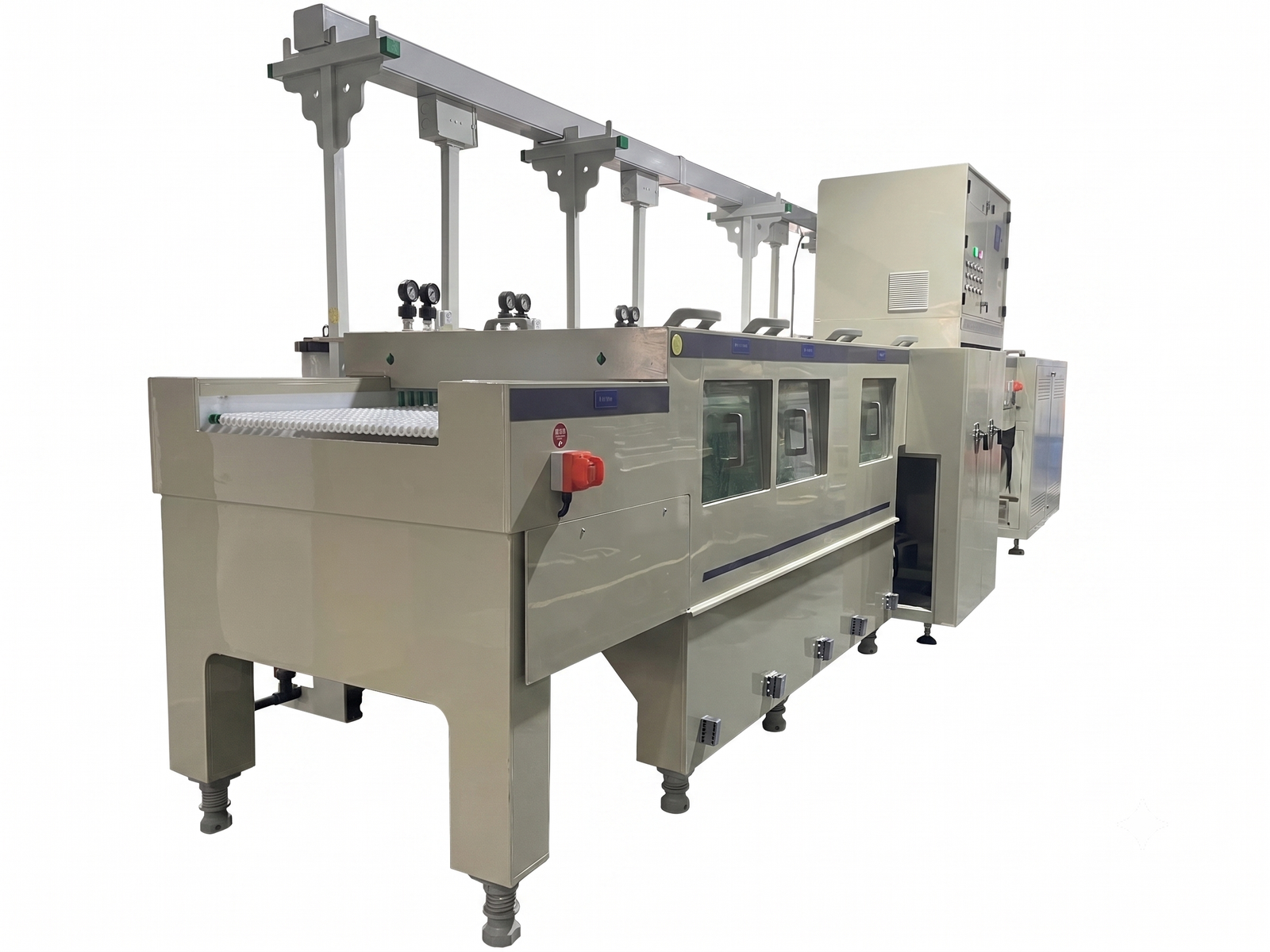

PCB final cleaning machine
Finished PCB cleaning machine is waiting for you.
Finished PCB cleaning machine is constructed with PP body for excellent corrosion resistance.

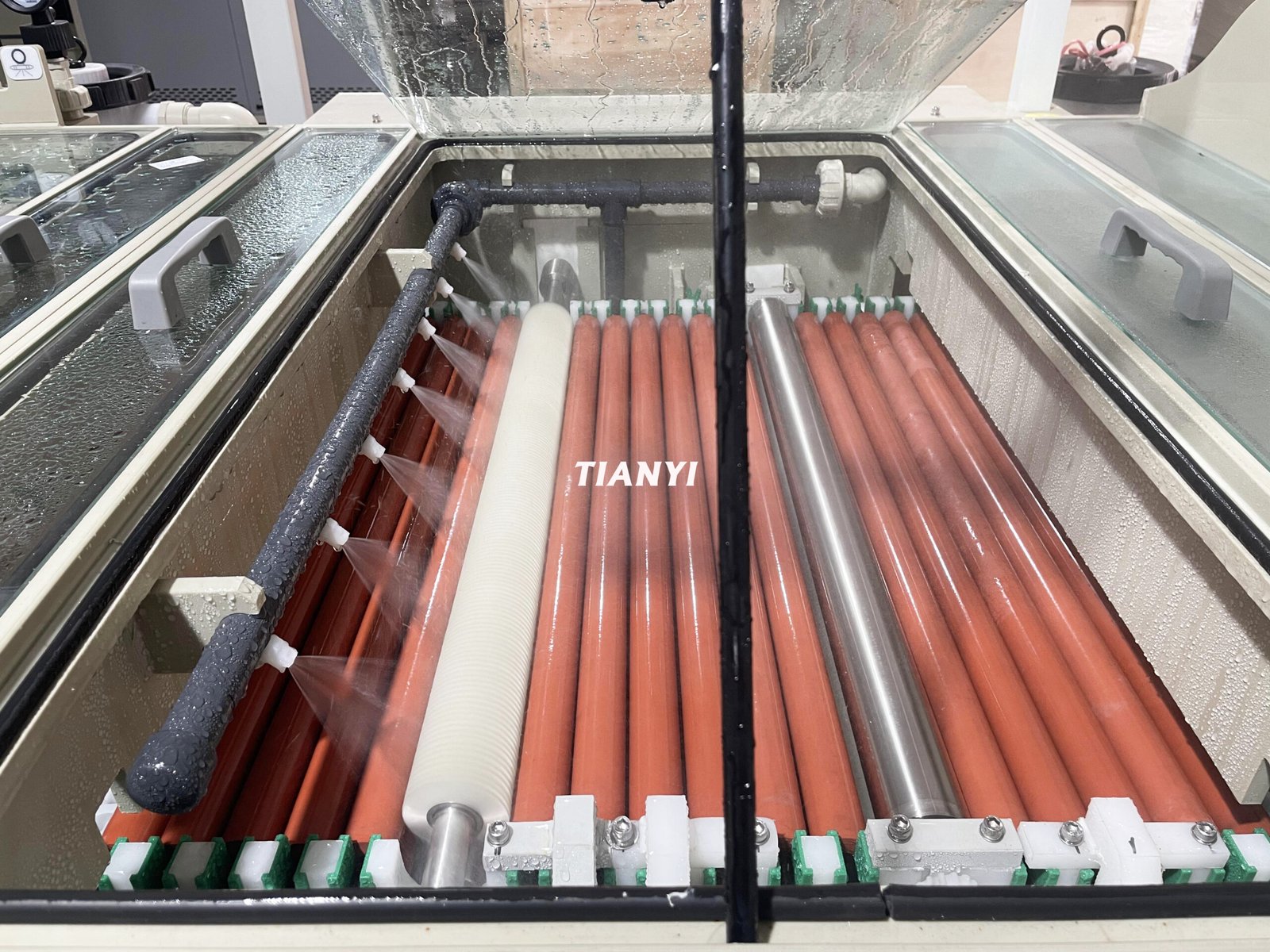

Equipped with non woven brushes and an oscillation system, the scrubbing unit provides uniform and efficient copper polishing for PCB surface treatment.
It ensures the boards meet cleanliness requirements, improves product reliability, and prepares the PCB for subsequent inspection, coating, or packaging.
