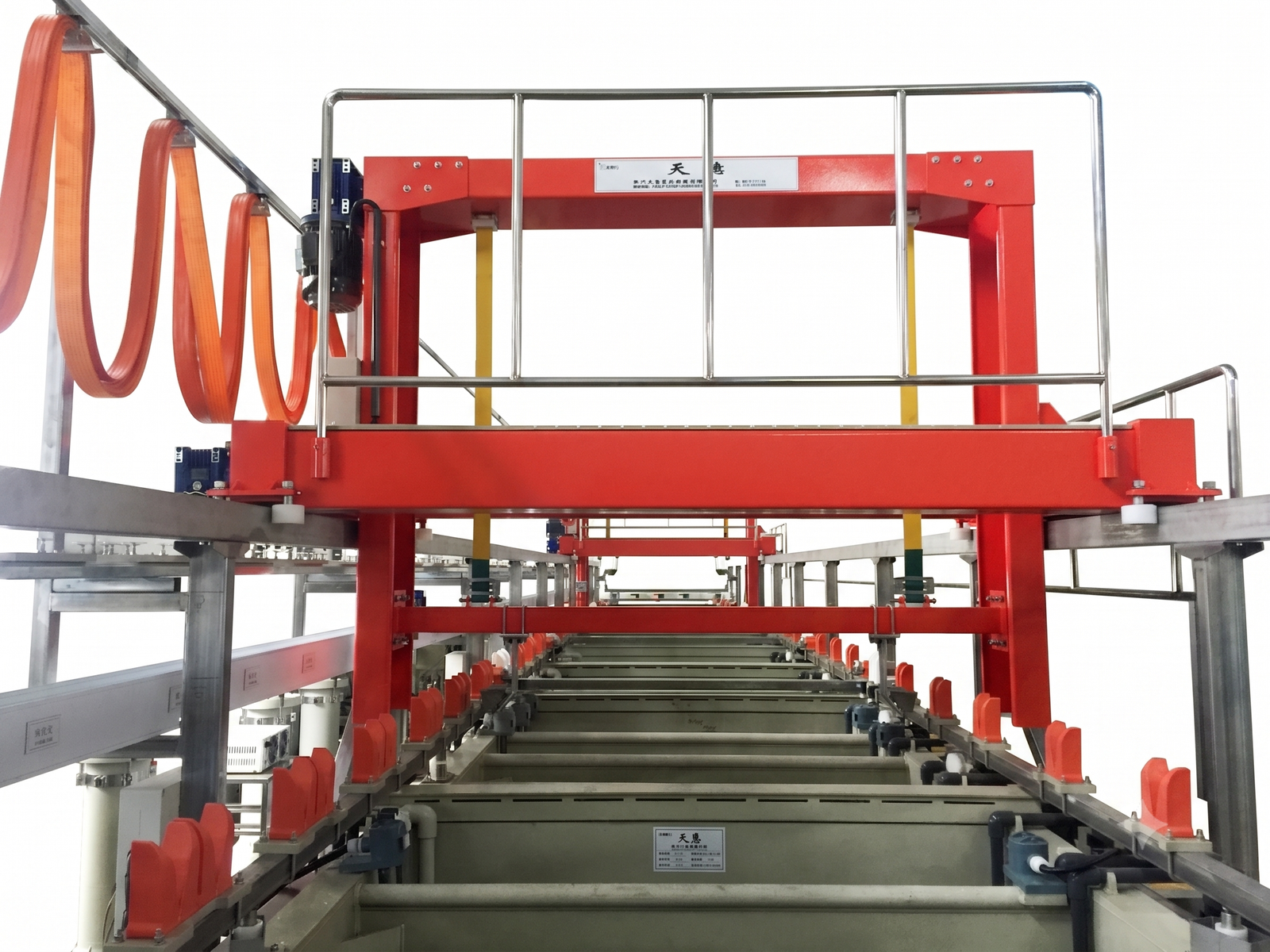

PCB PTH LINE
Specifications:
- PTH platingmachine process includes: Loading→ Degreasing → Hot water →Cascade water → Micro etch →Cascade water→ Pre-dip→ Activation → Cascade water → Speed up →Cascade water →Electroless copper →Cascade water → Unloading
- Dimension: L12,800xW3500xH4000MM
- Tanks dimension: L1200xW900xH900 mm
- PTH heating/cooling: Electric heating with cooling coil
- PTH process time: 20minuts
- Total power consumption: 58KW
- Guarantee: 1year
- Optional: Filter, Auto regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Description
PCB PTH LINE
PCB PTH line is waiting for you.
The PCB PTH line is used for through-hole plating, ensuring uniform copper deposition and reliable electrical connectivity for printed circuit boards.
Machine Construction:
- Frame: Made of SS 304 stainless steel for strength and corrosion resistance.
- Tanks: PP material (12mm/15mm/20mmthick) with tube reinforcement for extra durability.
- Oscillation System: Ensures even processing and better chemical exchange.
- Air Agitation System: Provides uniform solution circulation and stable operation.
- Transport System: One setPLC-controlled transporters for precise and automatic movement.
