Metal Etching machine for Stainless steel Elevator door
Specifications:
- Etching machine process includes: Loading → Etching → Recycle washing (1/2) → Inspection → Soak →Film stripping → Recycle washing (3/4) →Squeezing → Cold blower →Hot air drying → Unloading
- Dimension: L37,118xW5,090xH2,600MM
- Effective working width: 1650mm
- Etching heating/cooling: Steam heating with cooling coil
- Etching pump: 10HP 12SET single side Etching
- Total power consumption: 216.5KW
- Guarantee: 1year
- Optional: Acid regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Description

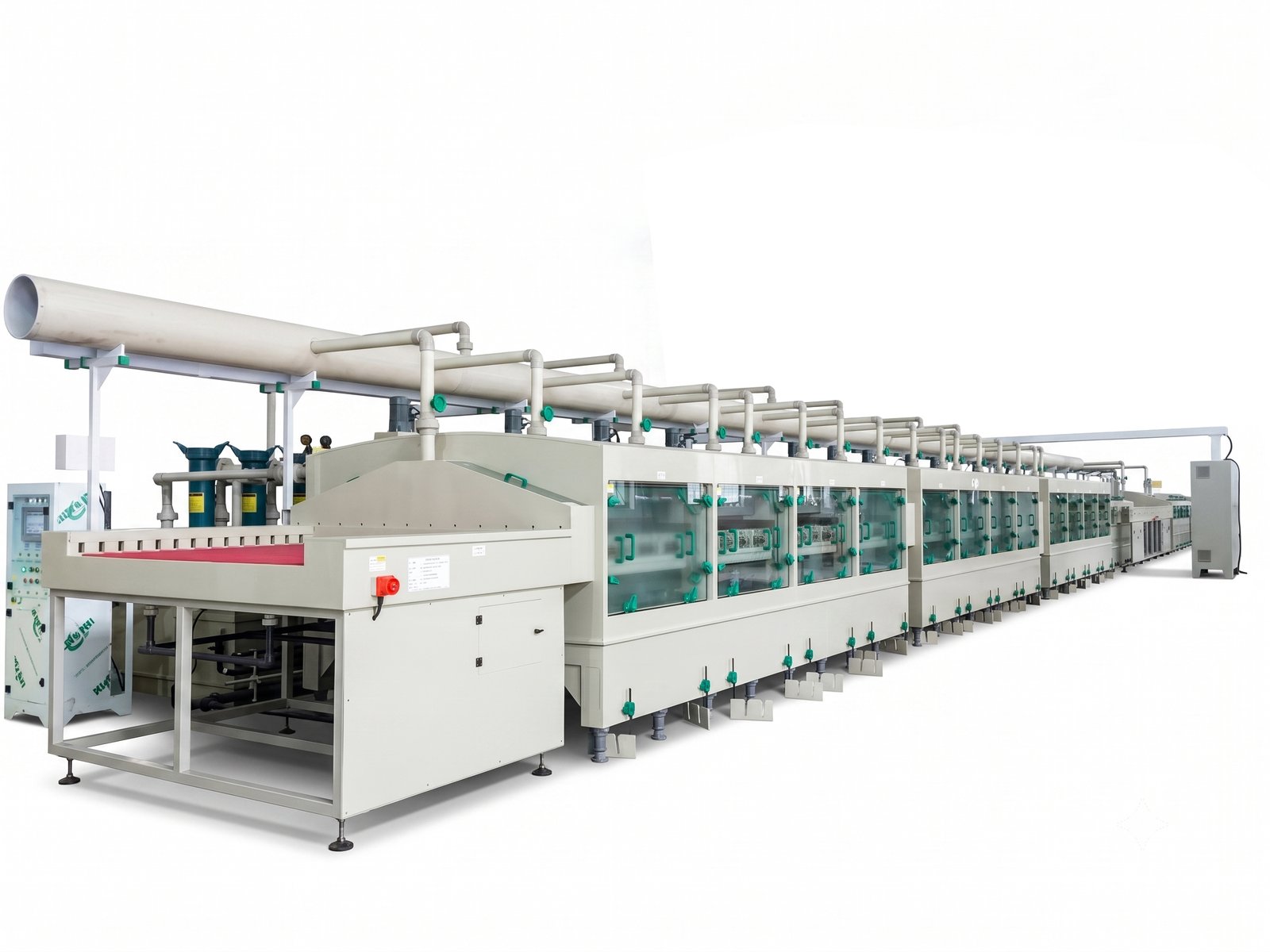

Metal Etching machine for stainless steel sheet cookware
Etching machine is waiting for you.

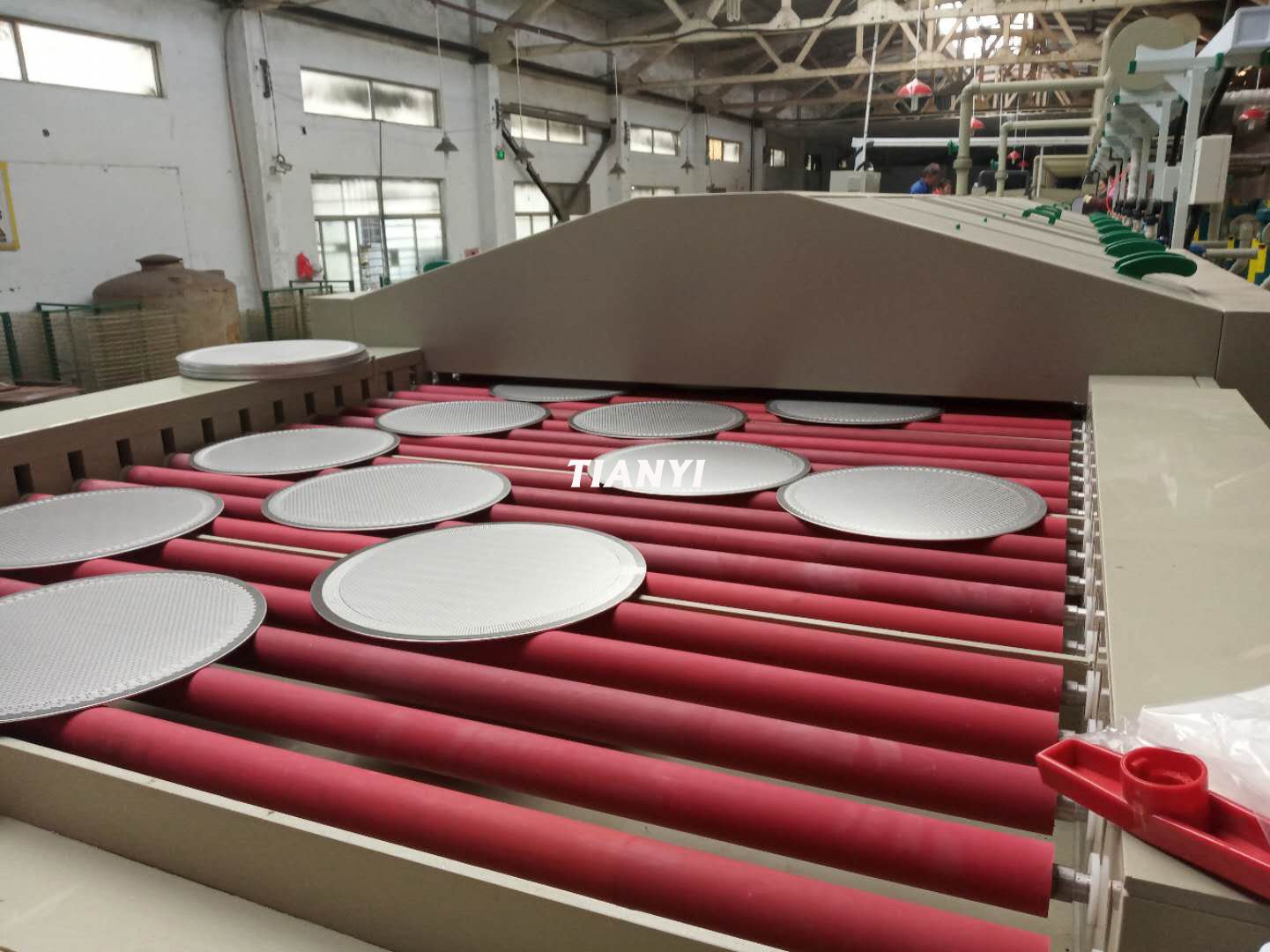

Effective etching spraying length is 12 meter, deep etching on stainless steel sheet for cookware pan, etching depth 35micros.
Equipped with an acid regeneration system to ensure precise concentration control and stable performance for batch etching production
Constructed with a corrosion-resistant body and advanced PP material. At the back side of the etching module, a chemical solution circulation tank is installed to maintain uniform concentration throughout the module, ensuring a consistent and high-quality etching effect.
