Automatic PCB loader

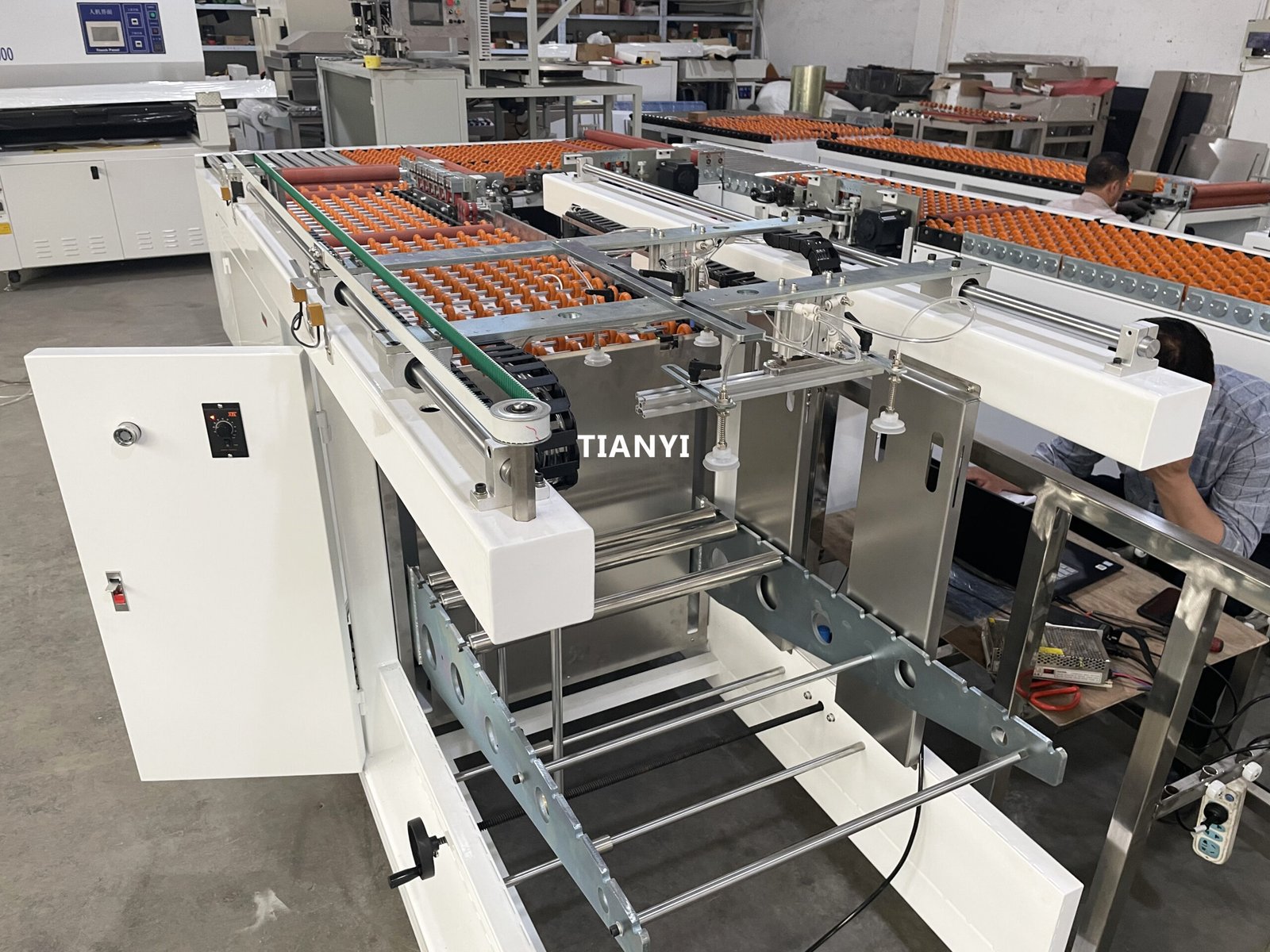

PCB loader uses a vacuum suction pick-up system to lift and place bare PCBs onto the conveyor. The vacuum cups gently pick up each board from the stack and transfer it to the next process without scratches or bending. The machine reduces manual handling, improves efficiency, and is suitable for various PCB sizes and thicknesses.
| Item | Typical Specification |
| Handling Method | Vacuum suction pick-up |
| Board Size Range | 200–600 mm (customizable) |
| Board Thickness | 0.3–3.0 mm |
| Frame Structure | Aluminum or stainless steel |

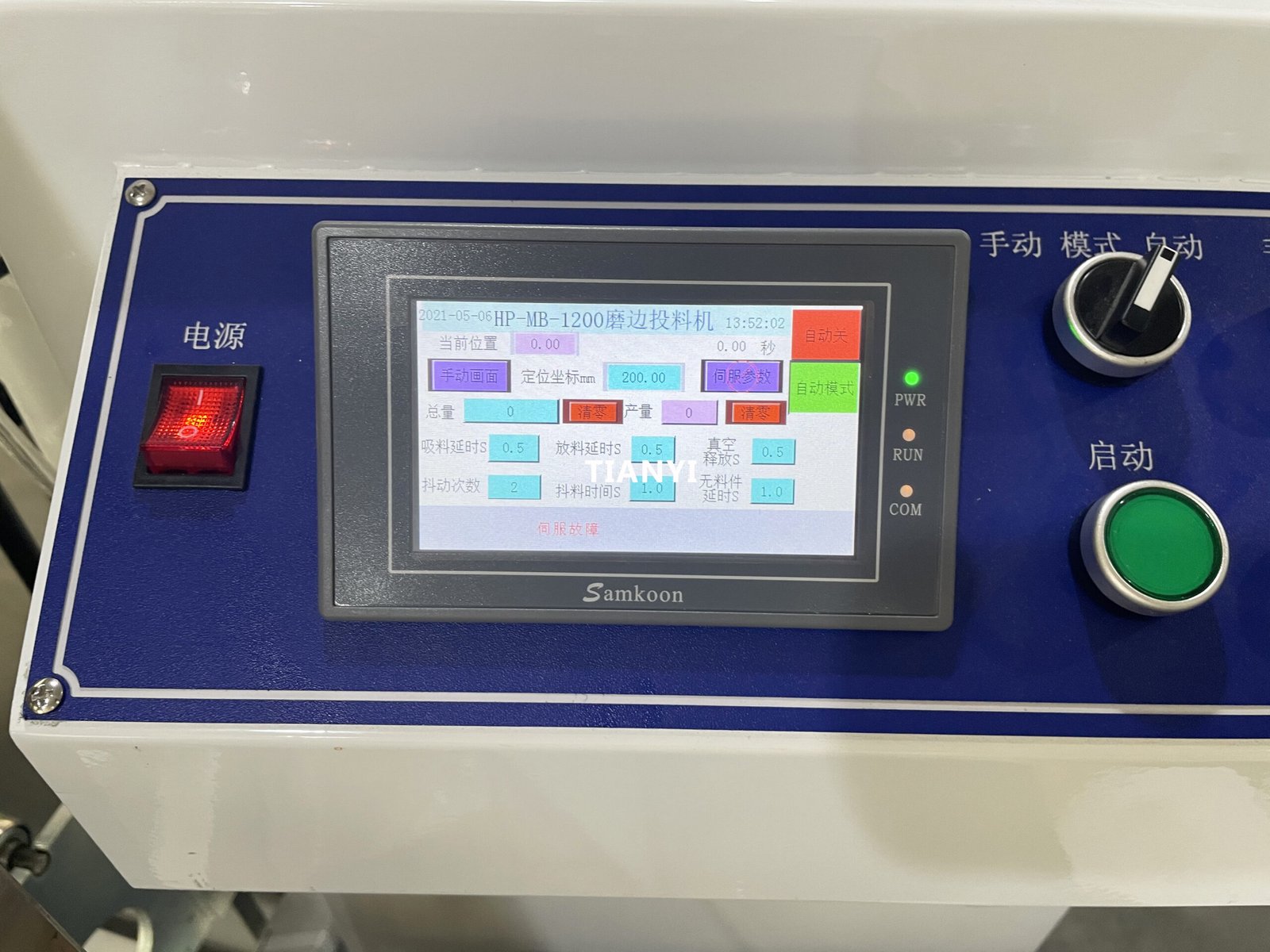

| Control | Simple push-button or PLC (optional) |
| Power Supply | AC 220V, 50/60Hz |
| Air Supply | 0.5–0.7 MPa compressed air |
