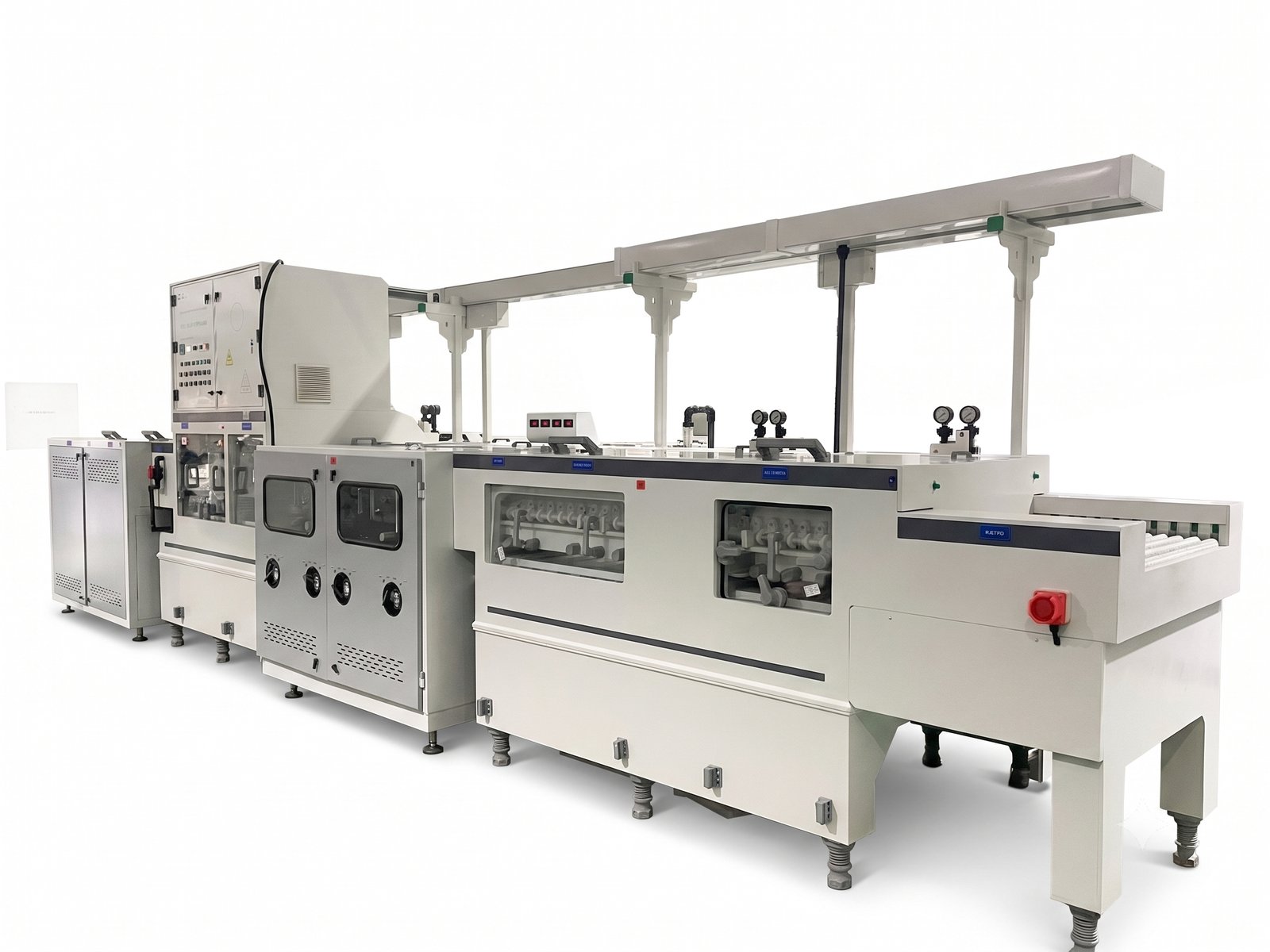

PCB DOUBLE SIDE BRUSHING MACHINE
Specifications:
- Brushingmachine process includes: Loading →Acid washing→ Recycle water washing(1/2) → DI water washing→Brushing →High pressure rinse →Recycle water washing(3/4) → DI water washing→Squeezing → Cold blower → Hot air drying →
- Dimension: L5040xW2300xH2500MM
- Effective working width: 740mm
- Brushing heating/cooling: None
- Brushing motor: 2.2KW 4SET with 200W 4SET Oscillation motor
- Total power consumption: 29.4KW
- Guarantee: 1year
- Optional: Auto loader and Unloader, Copper recovery unit
+8615895086578
Mobile
sales@ty-cz.com
Description

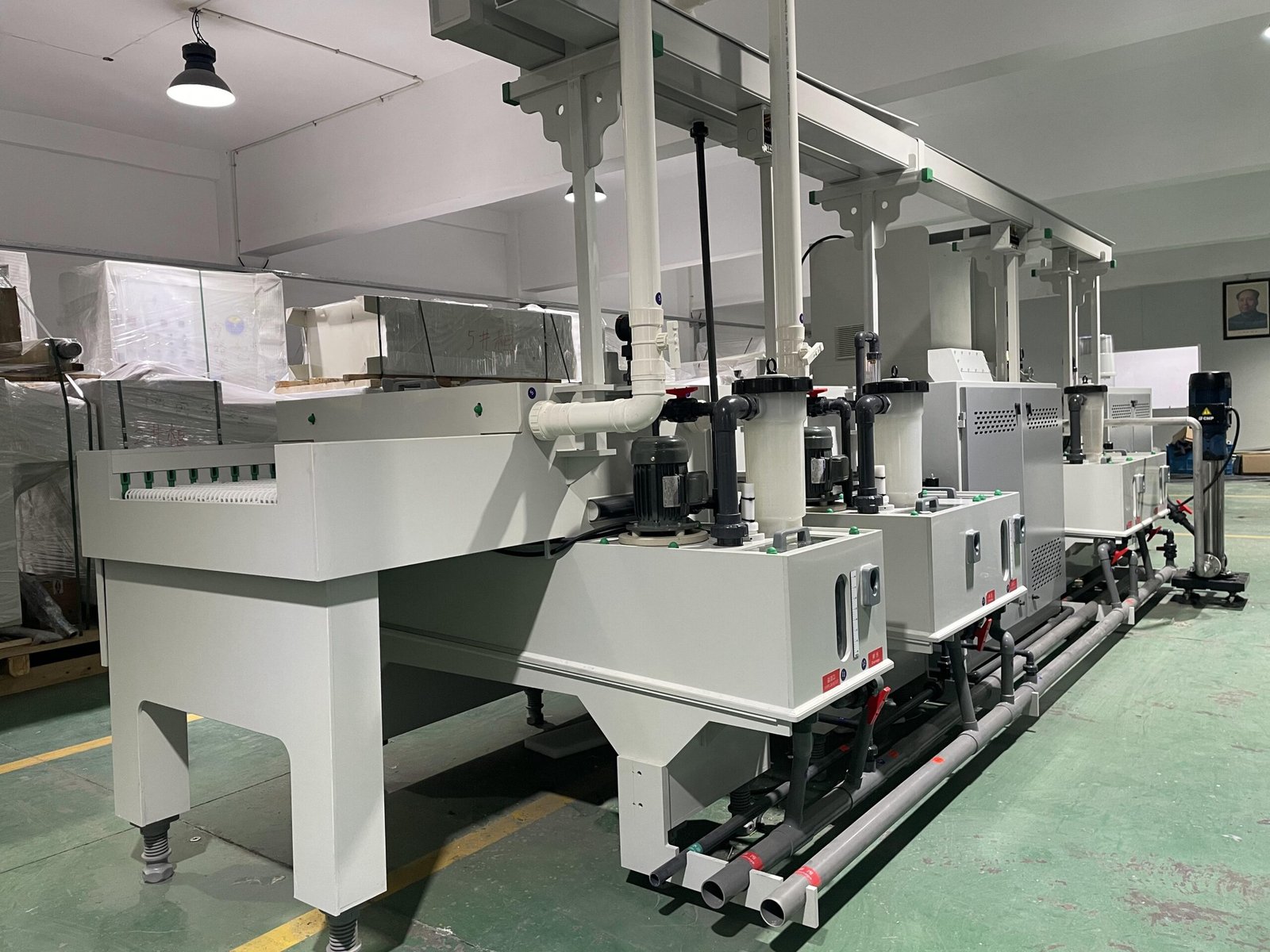

PCB double side brushing machine
Brushing machine is waiting for you.
The brushing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.
Equipped with 500# and 800# nylon brushes and an oscillation system, the brushing unit provides uniform and efficient copper polishing for PCB surface treatment.
Equipped one PVC water tank for washing water recycling in brushing module.
