Description

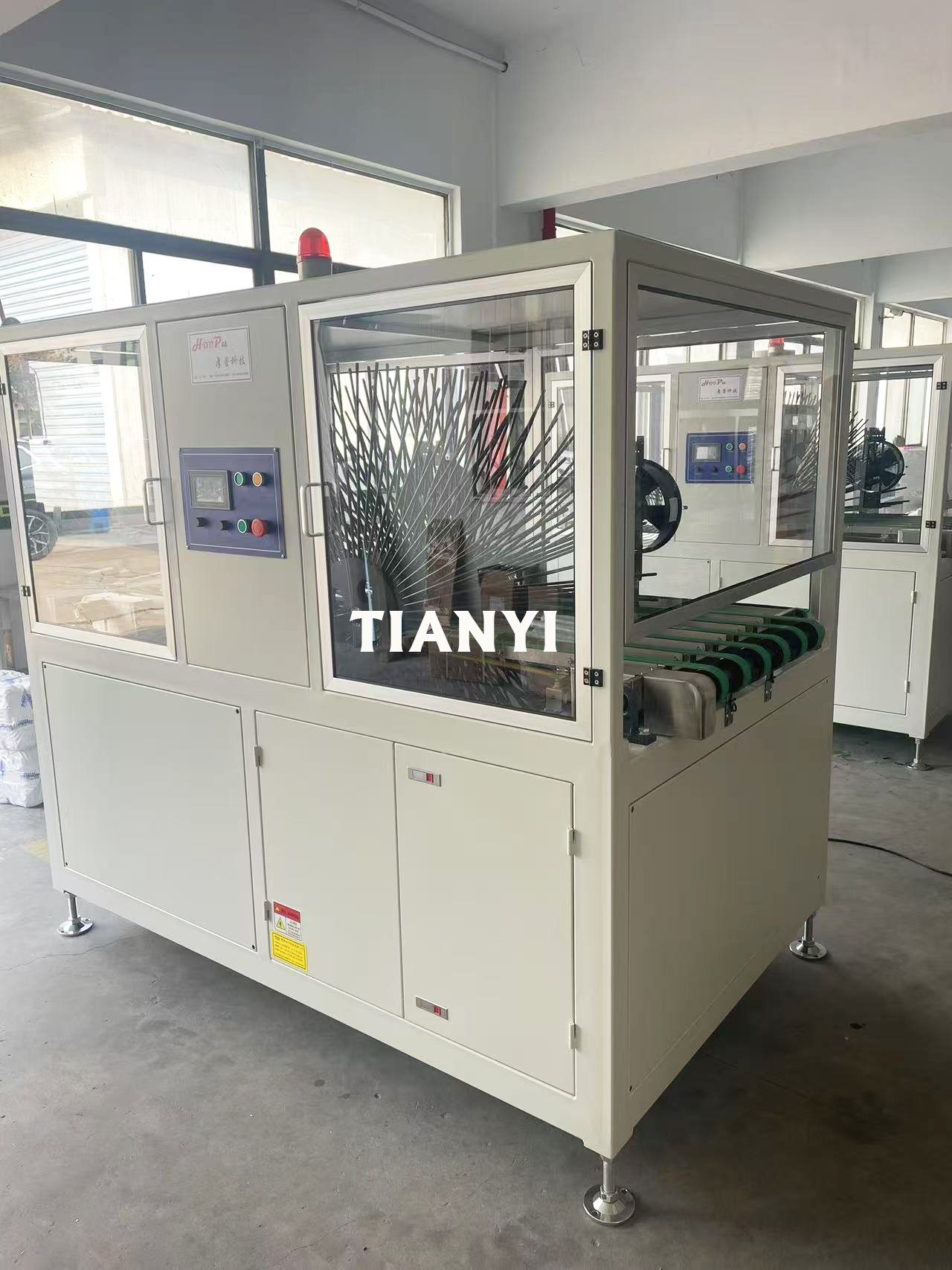

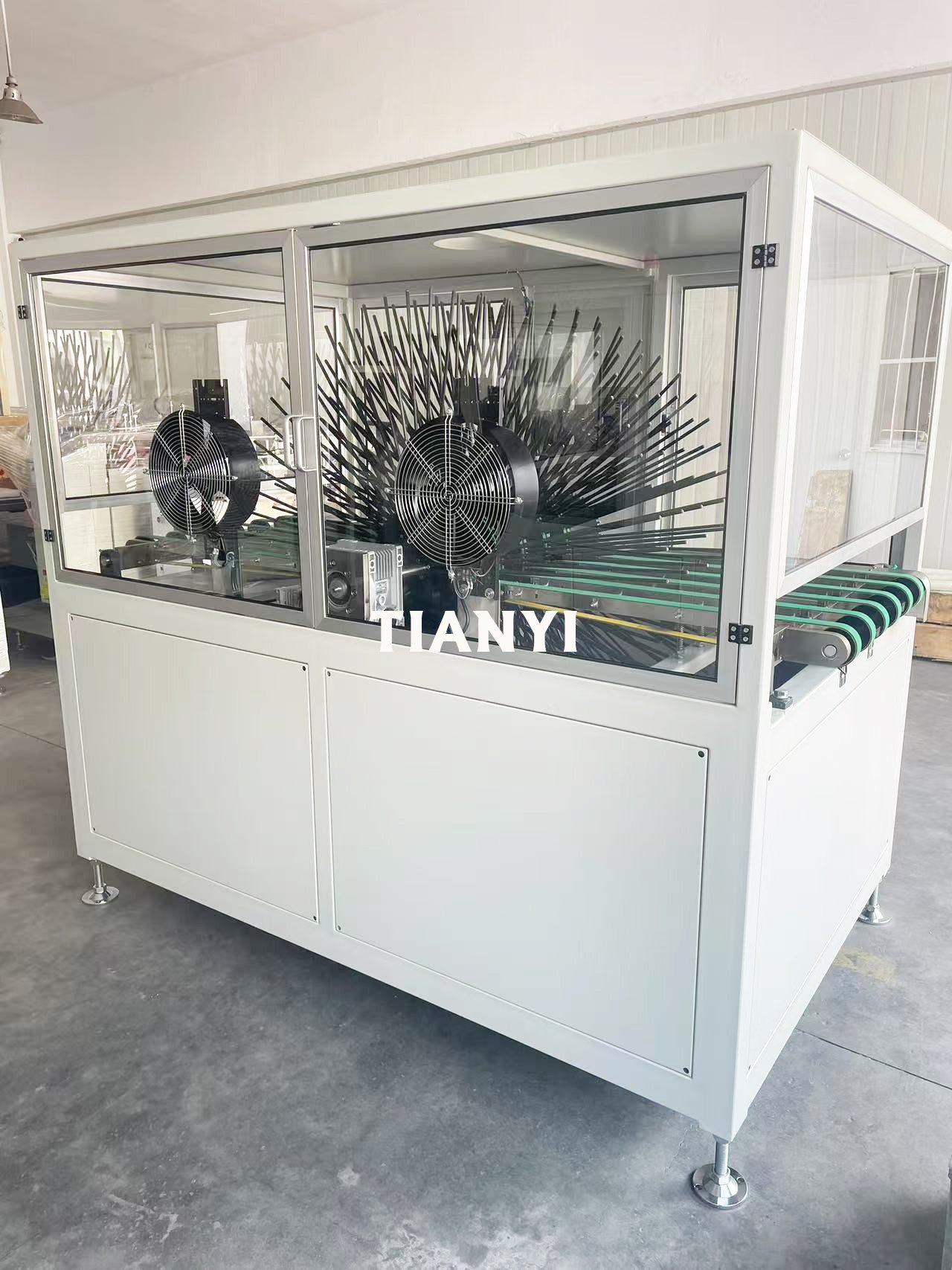

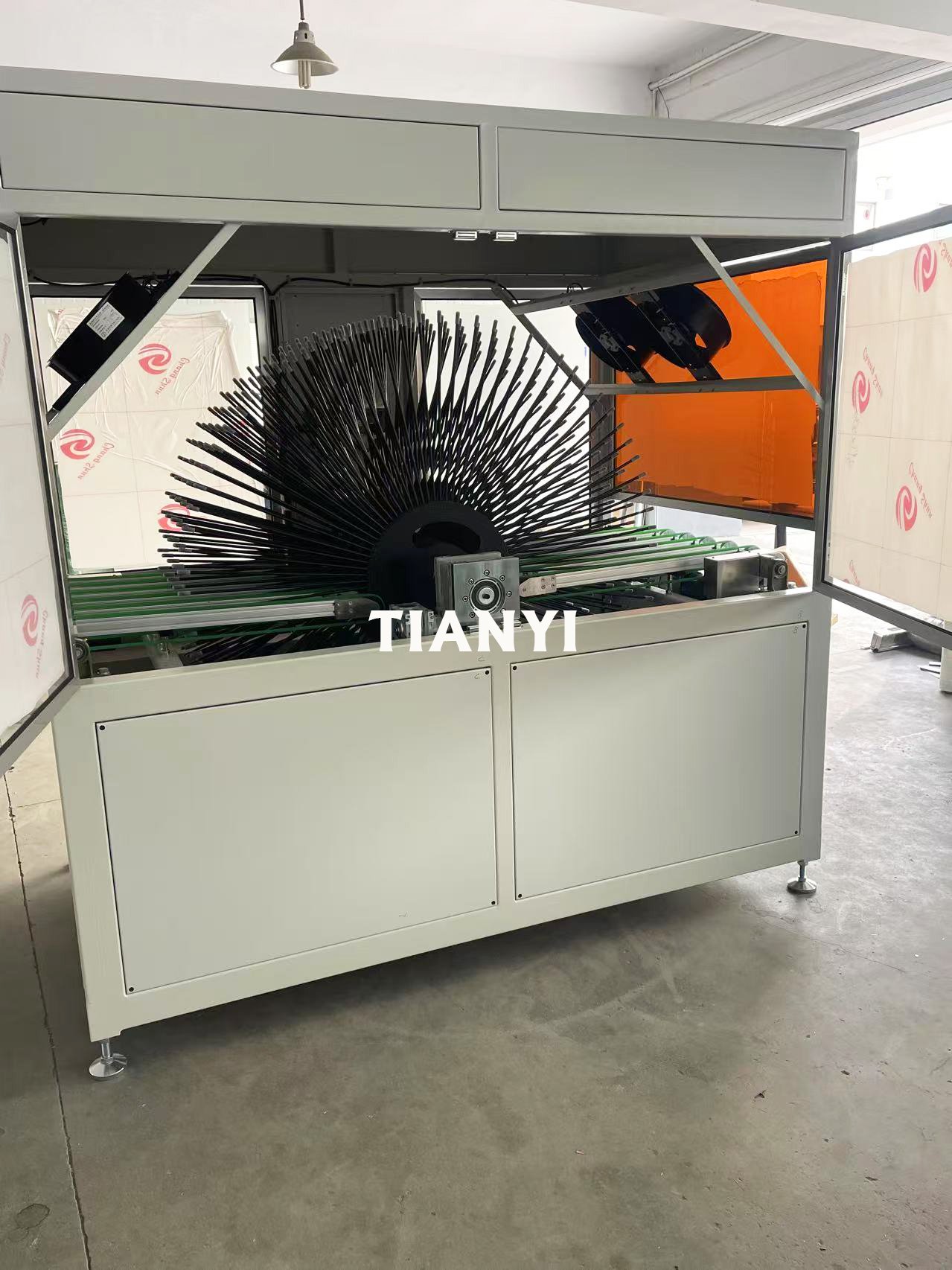

Sun panel flip machine
Designed for automatic flipping of PCBs or flat panels by 180° within a production line. The “sun-wheel” rotating mechanism gently picks up the board, rotates it, and places it back onto the conveyor without scratches or mechanical stress. This machine is commonly used in wet process lines, imaging lines, exposure lines, developing/etching/stripping equipment, and other processes that require orientation reversal.
| Item | Typical Specification |
| Applicable Panel | PCB / Glass / Substrate / Film Panels |
| Panel Size Range | 200 × 200 mm ～ 600 × 600 mm (customizable) |
| Panel Thickness | 0.1 mm ～ 5.0 mm (depending on material) |
| Flip Angle | 180° (±2°) |
| Mechanism Type | Sun-wheel rotating flip system |
| Conveyor Height | 850 ± 50 mm (compatible with standard lines) |
| Conveyor Speed | 1～20 m/min adjustable |
| Drive System | Servo / Stepper motor + timing mechanism |
| Panel Clamping | Soft contact wheel or rubberized clamp |
| Frame Material | Stainless steel / Aluminum (optional) |
| Power Supply | AC 220V, 50/60 Hz |
| Control System | PLC + HMI or standard relay control |
| Communication | Optional I/O for line integration |
