FILM STRIPPING MACHINE FOR THIN FILM SOLAR
Specifications:
- Strippingmachine process includes: Loading →Empty section 1 →Stripping1/2→Air blade1 →Media separation→Air blade2→DMSO cleaning →Empty section2→Recycle water2/3/4 → DI water washing→Squeezing → Cold blower → Hot air drying → Unloading
- Dimension: L18860xW2550xH2450MM
- Effective working width: 1300mm
- Stripping heating/cooling: Hot exchange by electric heating
- Stripping pump: 10HP 2SET single side Stripping
- Total power consumption: 98KW
- Guarantee: 1year
- Optional: Waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Description

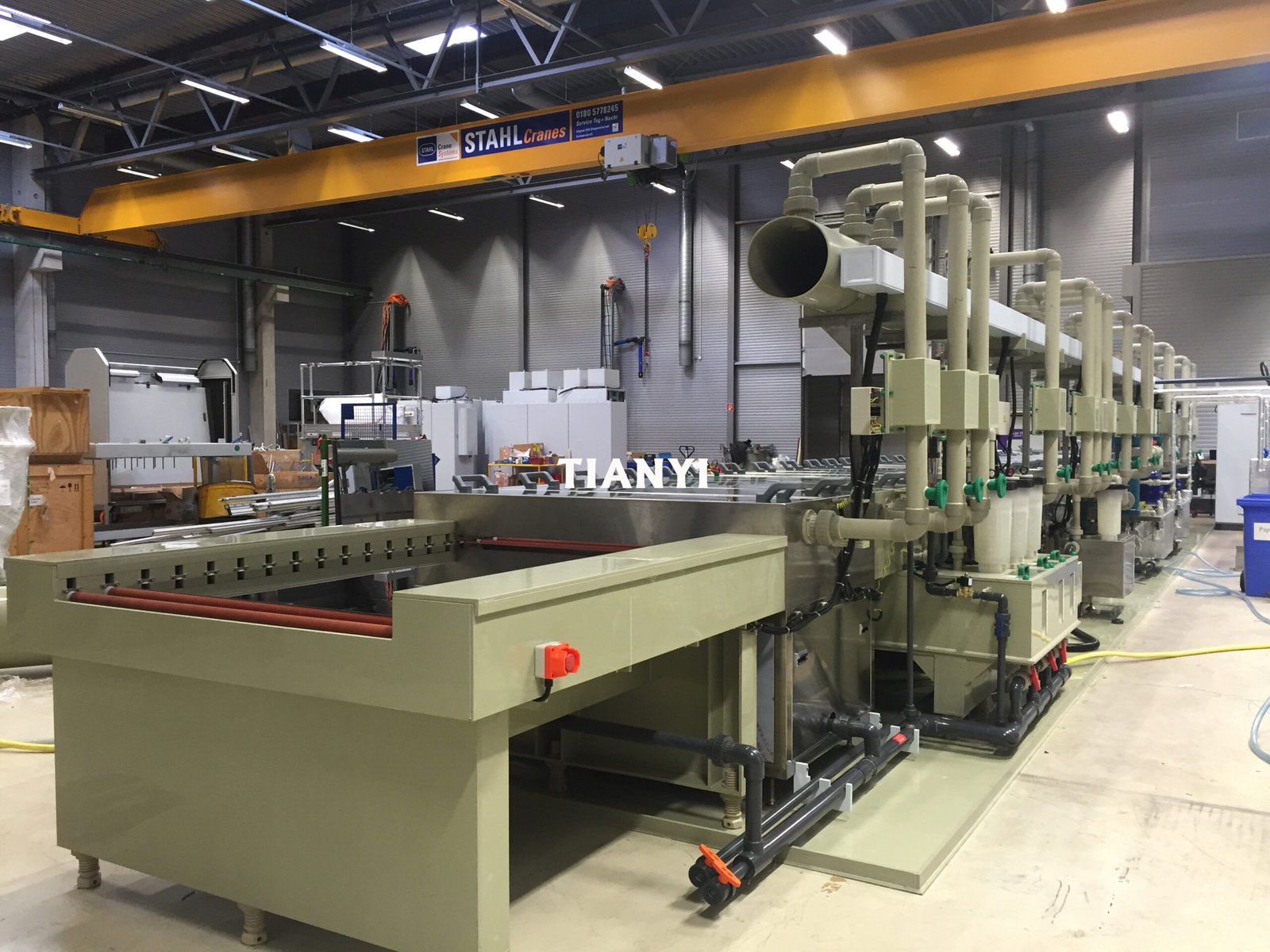

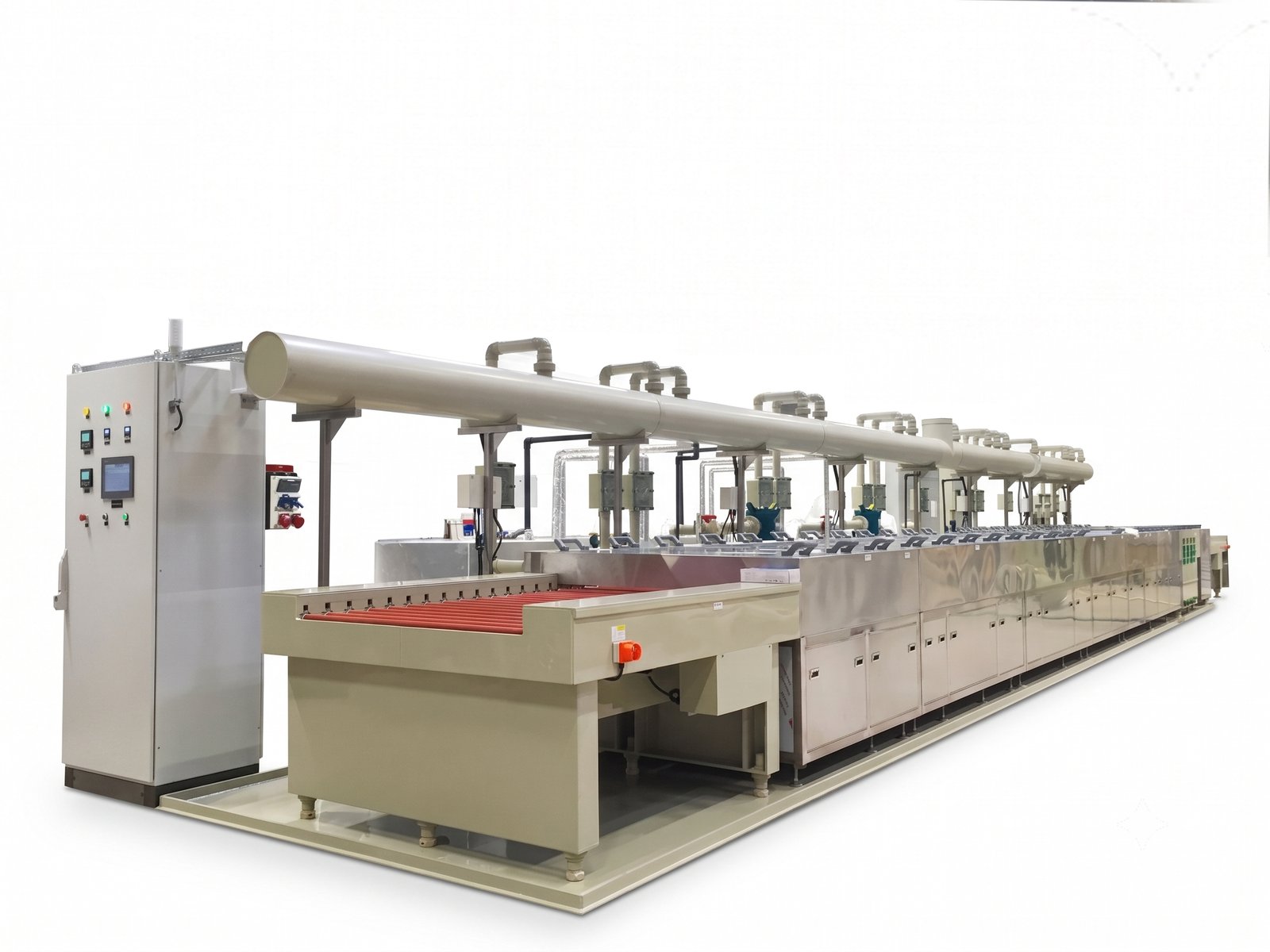

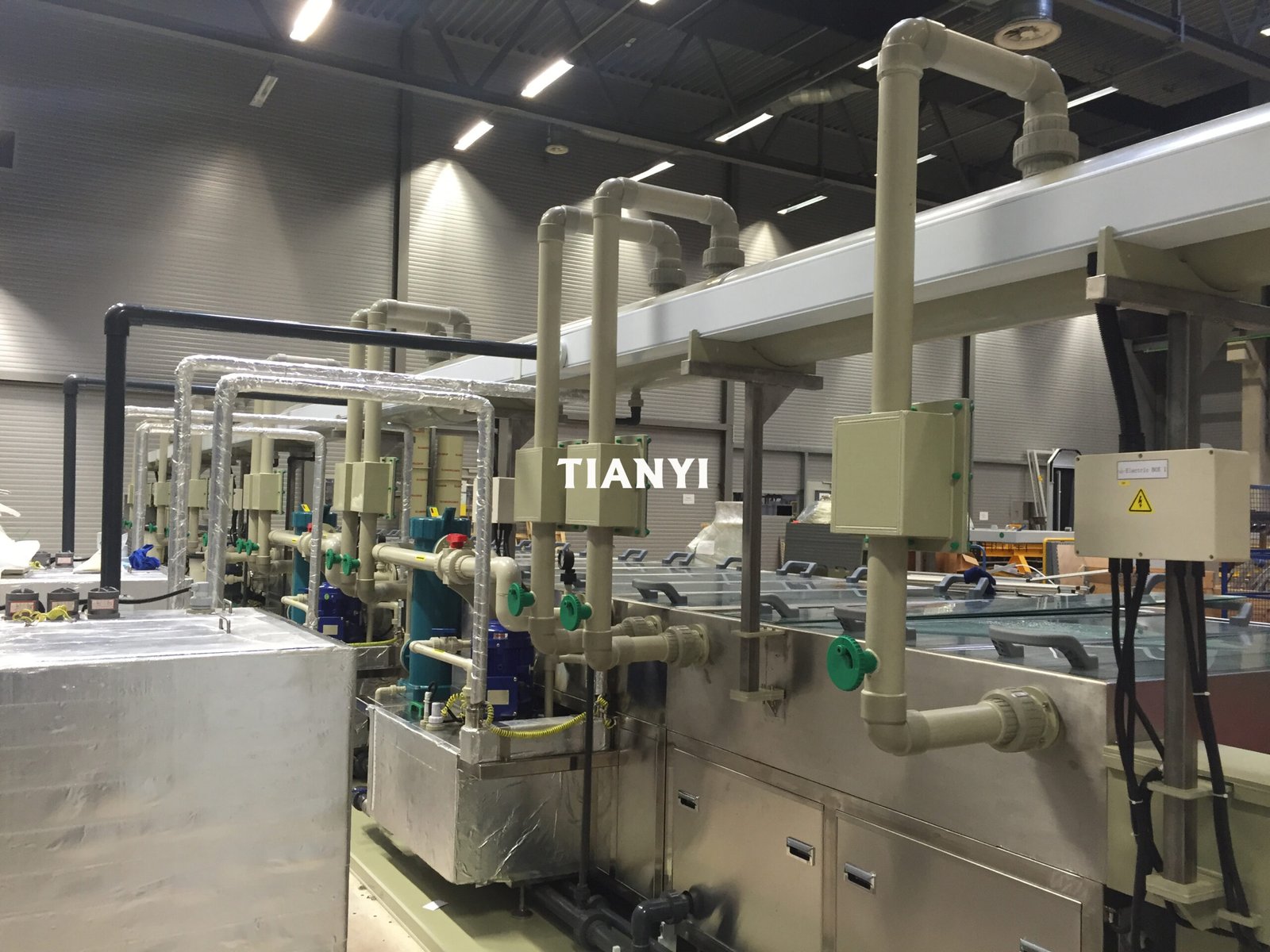

Film stripping machine for Thin film Solar
Stripping machine is waiting for you.
Constructed with a corrosion-resistant body and advanced PP material, stripping module made of SST316.
Film stripping machine for thin film solar, through high-pressure spraying or controlled chemical reactions, the machine effectively removes target film areas to achieve accurate electrode isolation and surface treatment.
