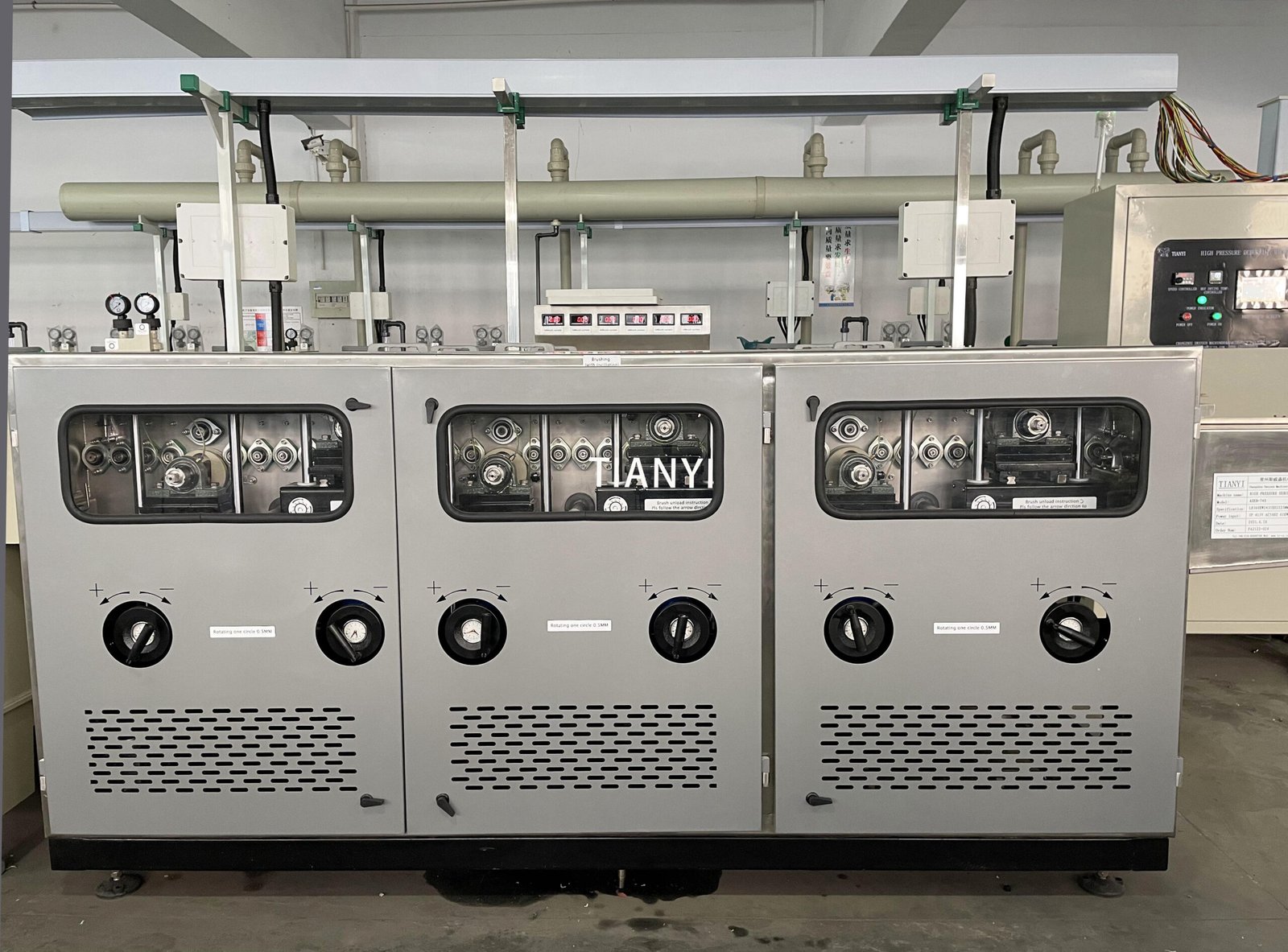

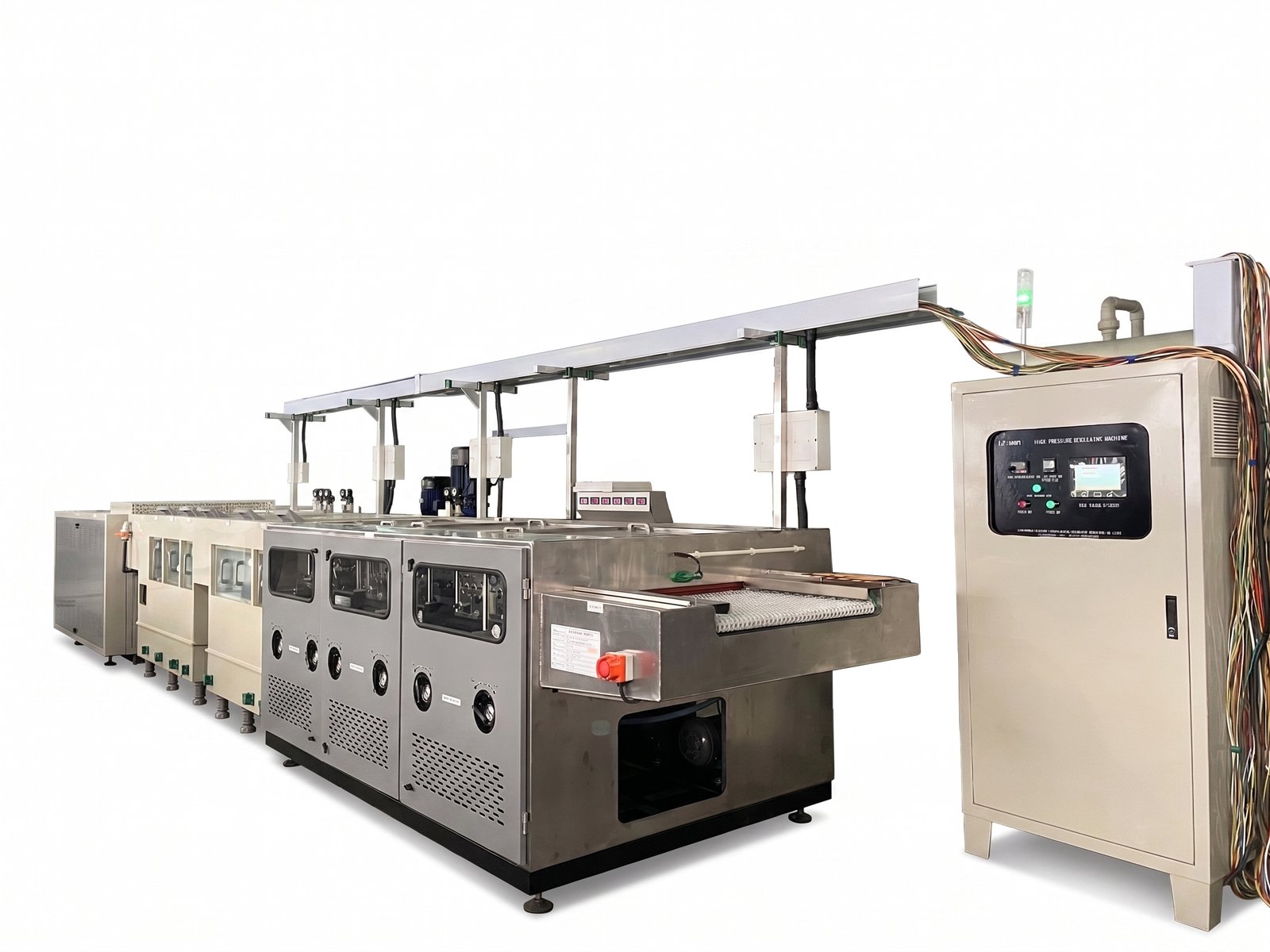

HIGH PRESSURE PCB DEBURING MACHINE
Specifications:
- Brushingmachine process includes: Loading → Brushing → Recycle water washing(1/2) → DI water washing→Squeezing → Cold blower →
- Dimension: L8360xW2435xH2225MM
- Effective working width: 740mm
- Brushing heating/cooling: None
- Brushing motor: 1.1KW 6SET with 200W 6SET Oscillation motor
- Total power consumption: 61KW
- Guarantee: 1year
- Optional: Auto loader and Unloader, copper recovery unit
+8615895086578
Mobile
sales@ty-cz.com
Description
High pressure PCB deburring machine
PCB wet process machine is waiting for you.
PCB deburring machine removes sharp edges and tiny burrs from circuit boards after cutting, CNC drilling, or routing,
It is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.
High pressure spraying pipe made of stainless steel, max spraying pressure 710PSI(Nanfang high pressue pump). Equipped with copper recovery unit for copper collection.
