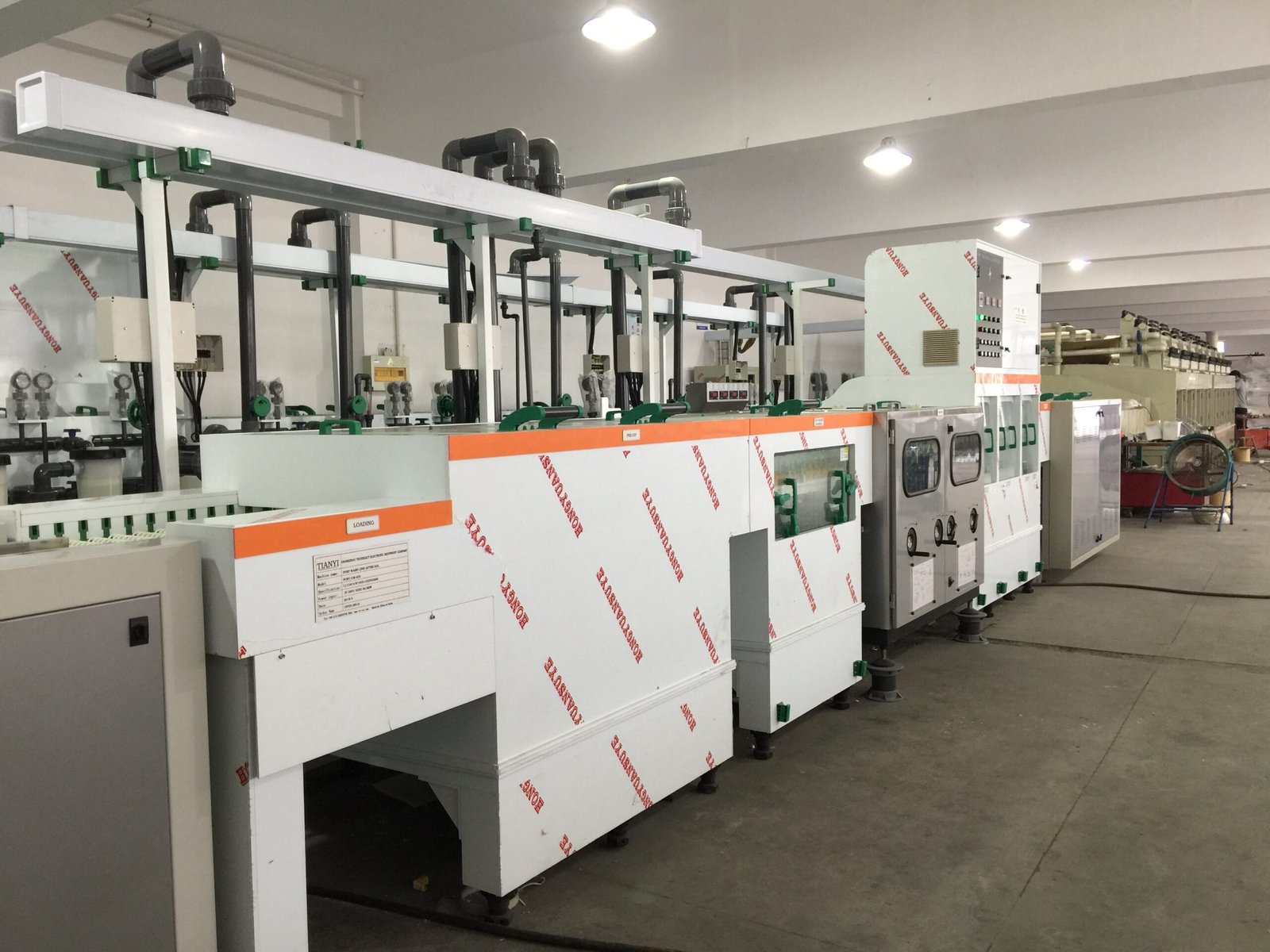

PCB HASL POST CLEAN LINE
Specifications:
- PCB HASL post washing machineprocess includes: Floating platform → Loading → Pre dip→ Hot water washing→Brushing→Recycle water1/2→High pressure washing→City water→Squeezing → Cold blower → Hot air drying → Unloading
- Dimension: L11340xW1900xH2000MM
- Effective working width: 740mm
- Developing heating/cooling: Electric heating with cooling coil

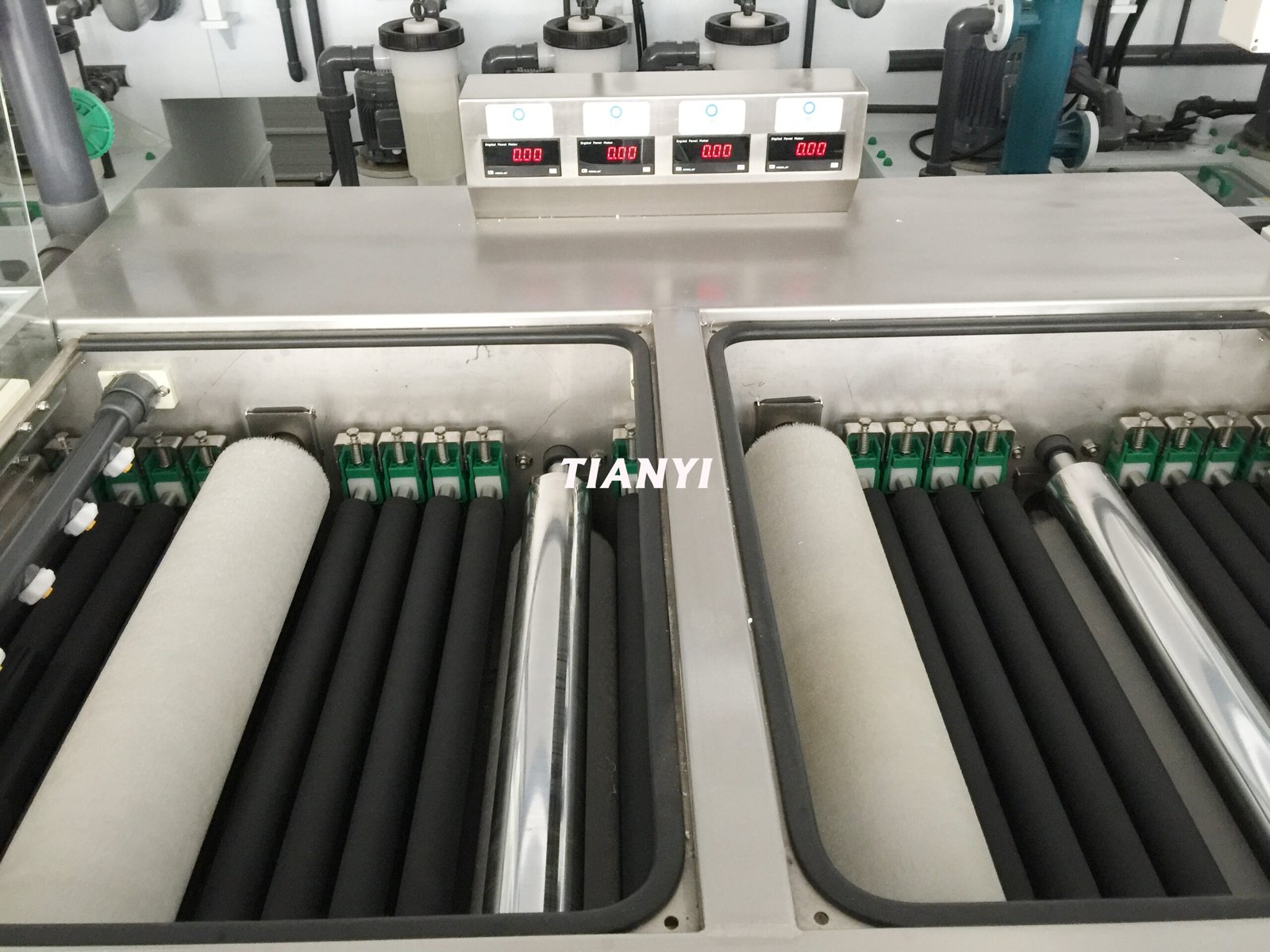

- Brushing motor: 1.1KW 4SET
- Total power consumption: 56.9W
- Guarantee: 1year
- Optional: waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Description
PCB HASL Post washing machine
PCB HASL Post washing machine is waiting for you.
The PCB HASL post washing machine is used to clean PCBs after the HASL process. It removes flux residues and contaminants to ensure the board surface is clean, reliable, and ready for inspection or packing.
Equipped with floating platform, working for loading PCB boards, buffer high-temperature PCB boards, keep the flat.
