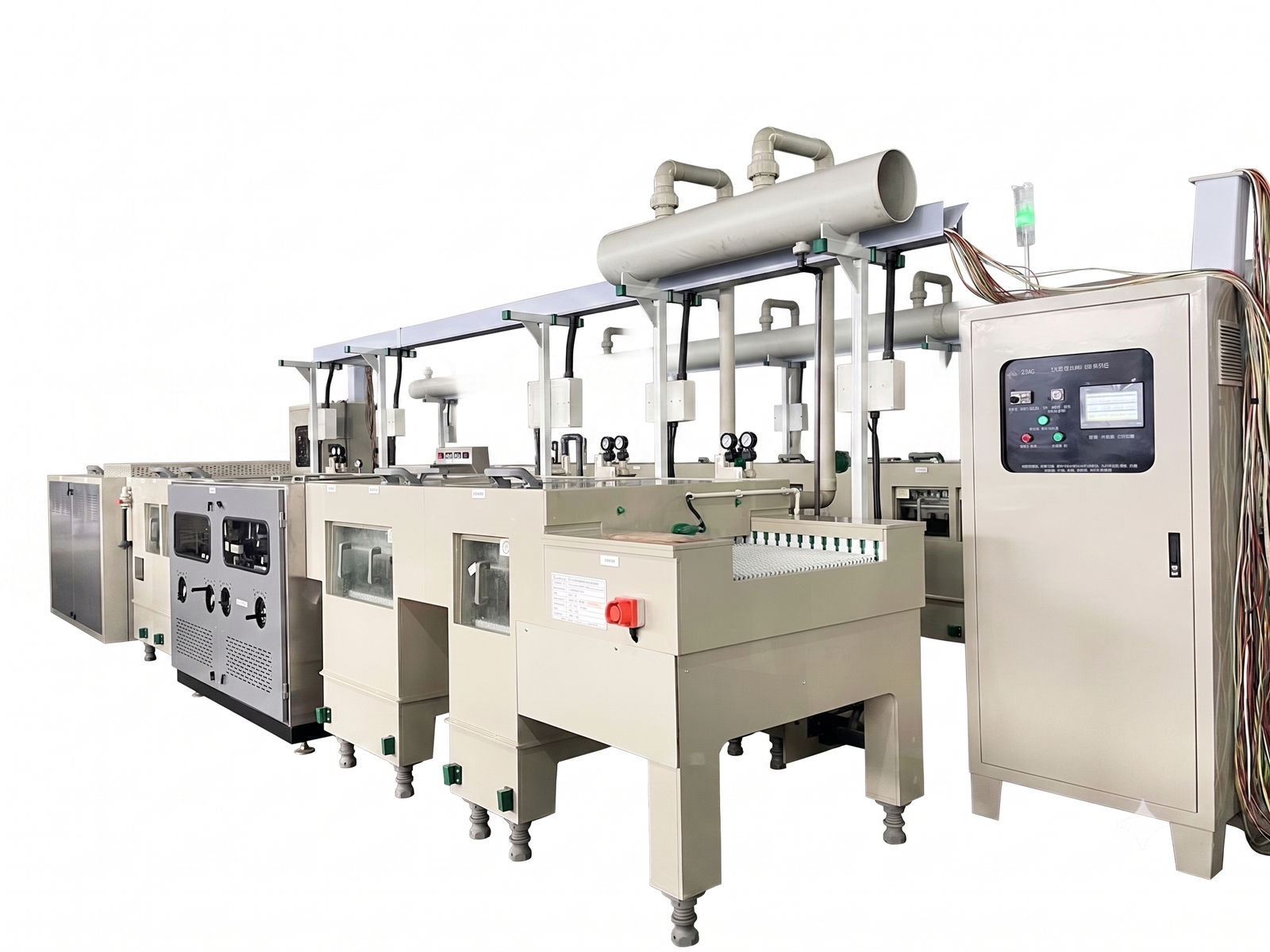

PCB SCRUBBING MACHINE
Specifications:
- Scrubbingmachine process includes: Loading →Acid washing→ Recycle water washing(1/2) → DI water washing→Brushing →High pressure rinse →Recycle water washing(3/4) → DI water washing→Squeezing → Cold blower → Hot air drying →
- Dimension: L7830xW2455xH2240MM
- Effective working width: 740mm
- Brushing heating/cooling: None
- Brushing motor: 2.2KW 4SET with 200W 4SET Oscillation motor
- Total power consumption: 31.5KW
- Guarantee: 1year
- Optional: Auto loader and Unloader, Copper recovery unit
+8615895086578
Mobile
sales@ty-cz.com
Description

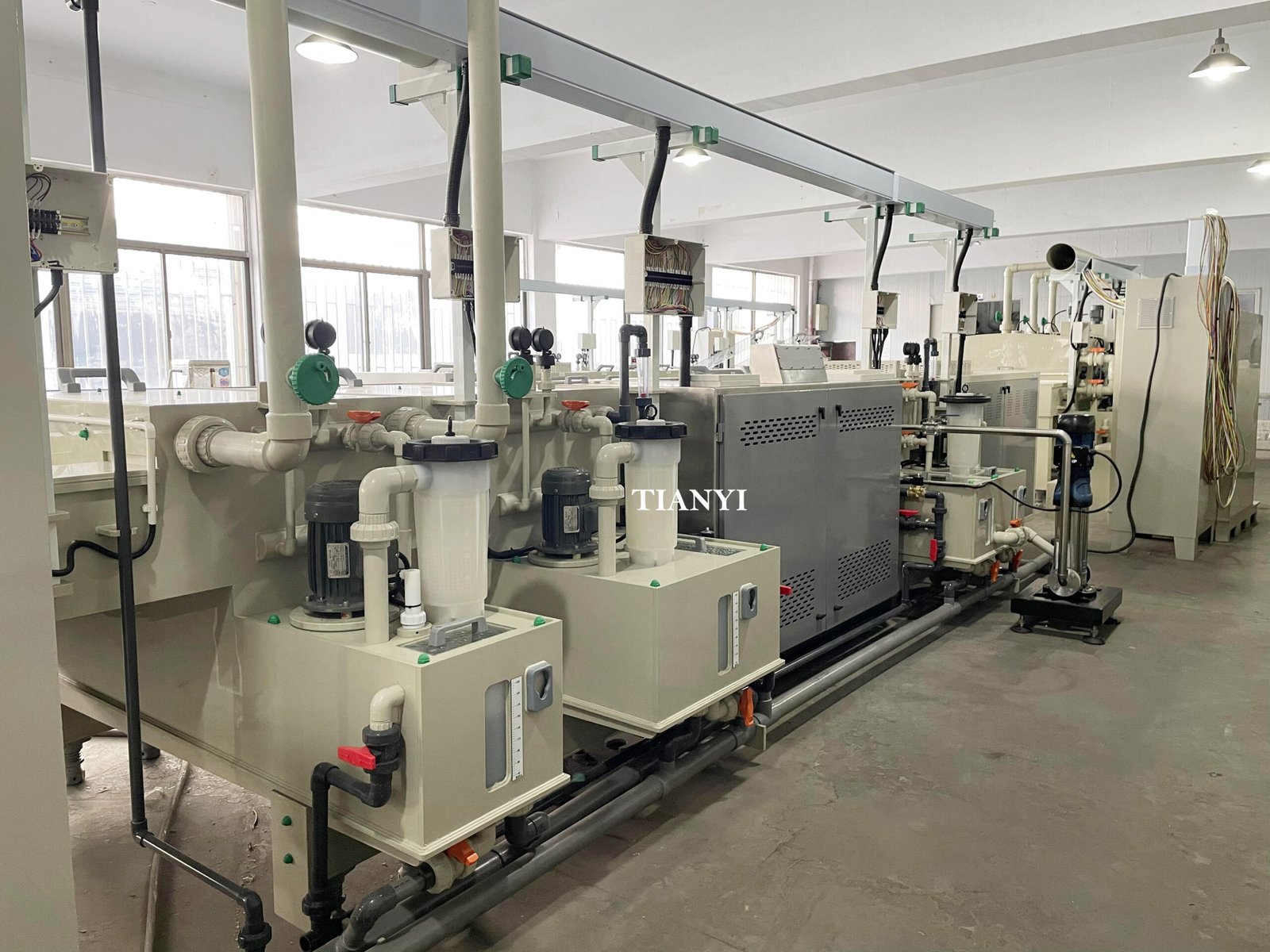

PCB Scrubbing machine
Scrubbing machine is waiting for you.
The scrubbing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.

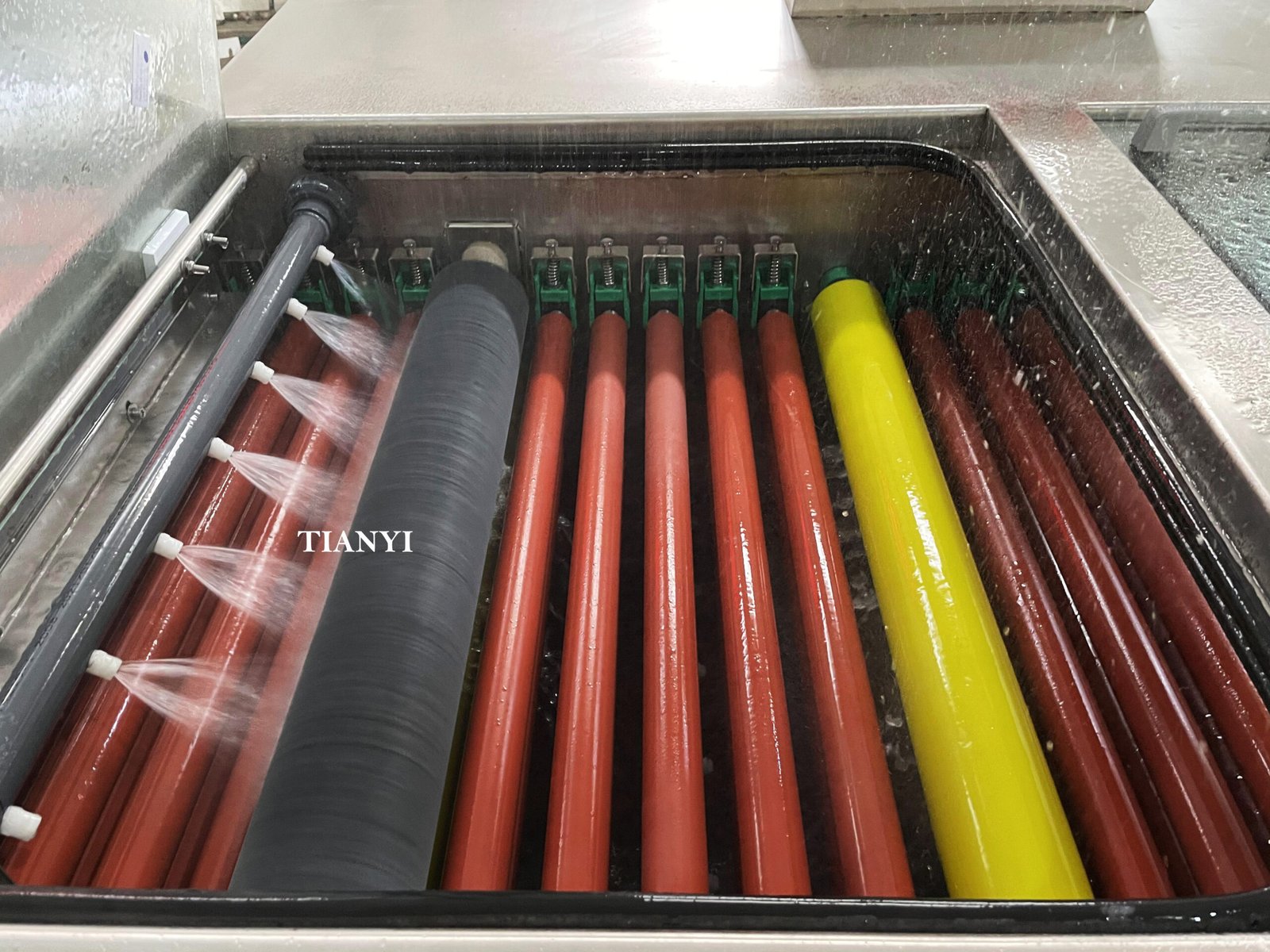

Equipped with non woven brushes and an oscillation system, the scrubbing unit provides uniform and efficient copper polishing for PCB surface treatment.
Equipped one PVC water tank for washing water recycling in brushing module.
