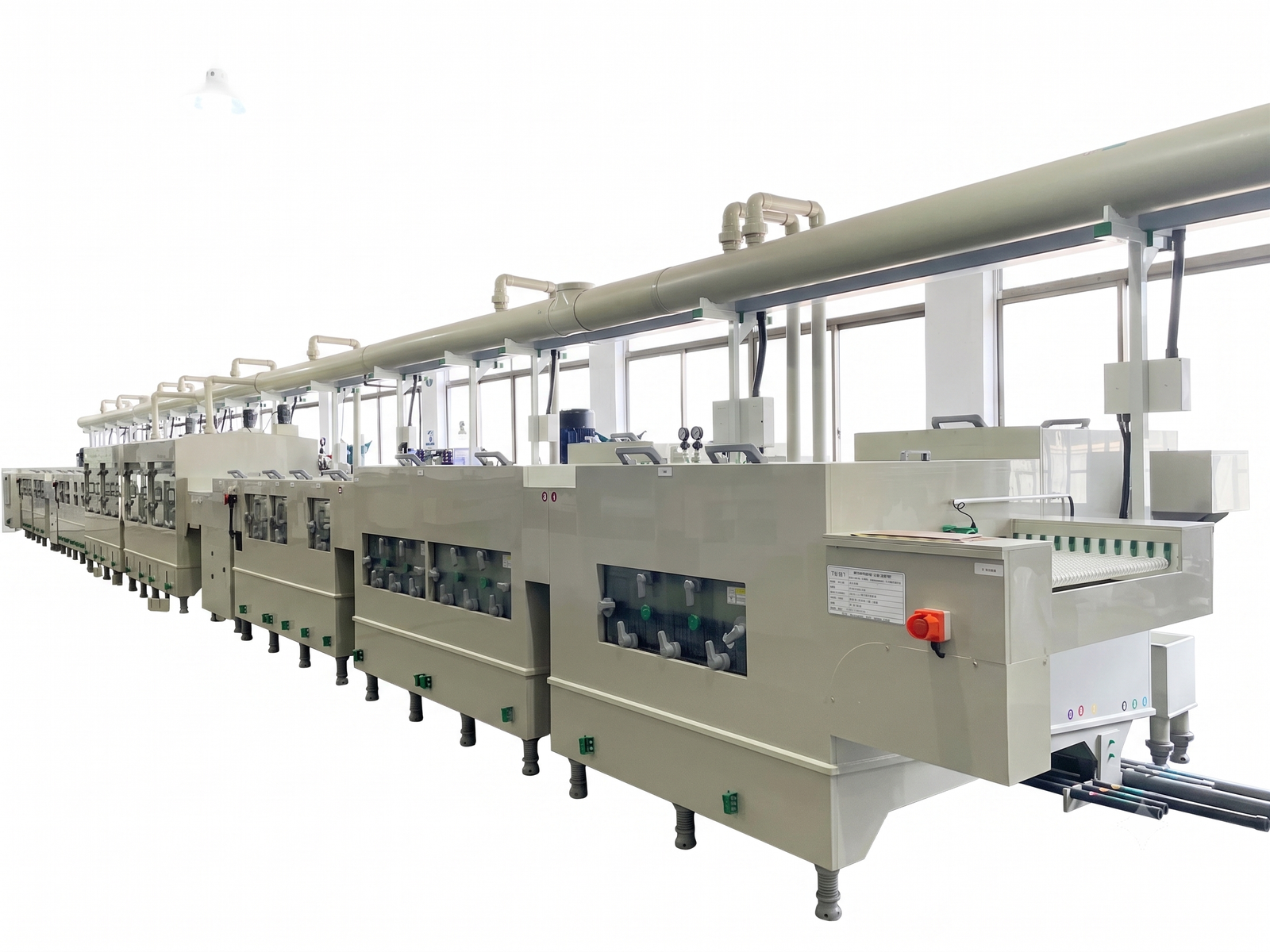

PCB STRIP ETCH STRIP MACHINE
Specifications:
- Etching machine process includes: Loading →Soak → Film stripping →Recycle washing (1/2/3) → DI water rinsing 1→ Squeezing →Inspection→Vacuum Etching → Recycle washing (4/5/6) → DI water rinsing 2→ Squeezing →Inspection →Tin stripping→Recycle washing(7/8/9)→DI water rinsing → Squeezing → Cold blower → Hot air drying →
- Dimension: L24,160xW2350xH2700MM
- Effective working width: 740mm
- Etching heating/cooling: Electric heating with cooling coil
- Etching pump: 7.5HP 4SET double side Etching
- Total power consumption: 148.8KW
- Guarantee: 1year
- Optional: Auto regeneration system; Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Description

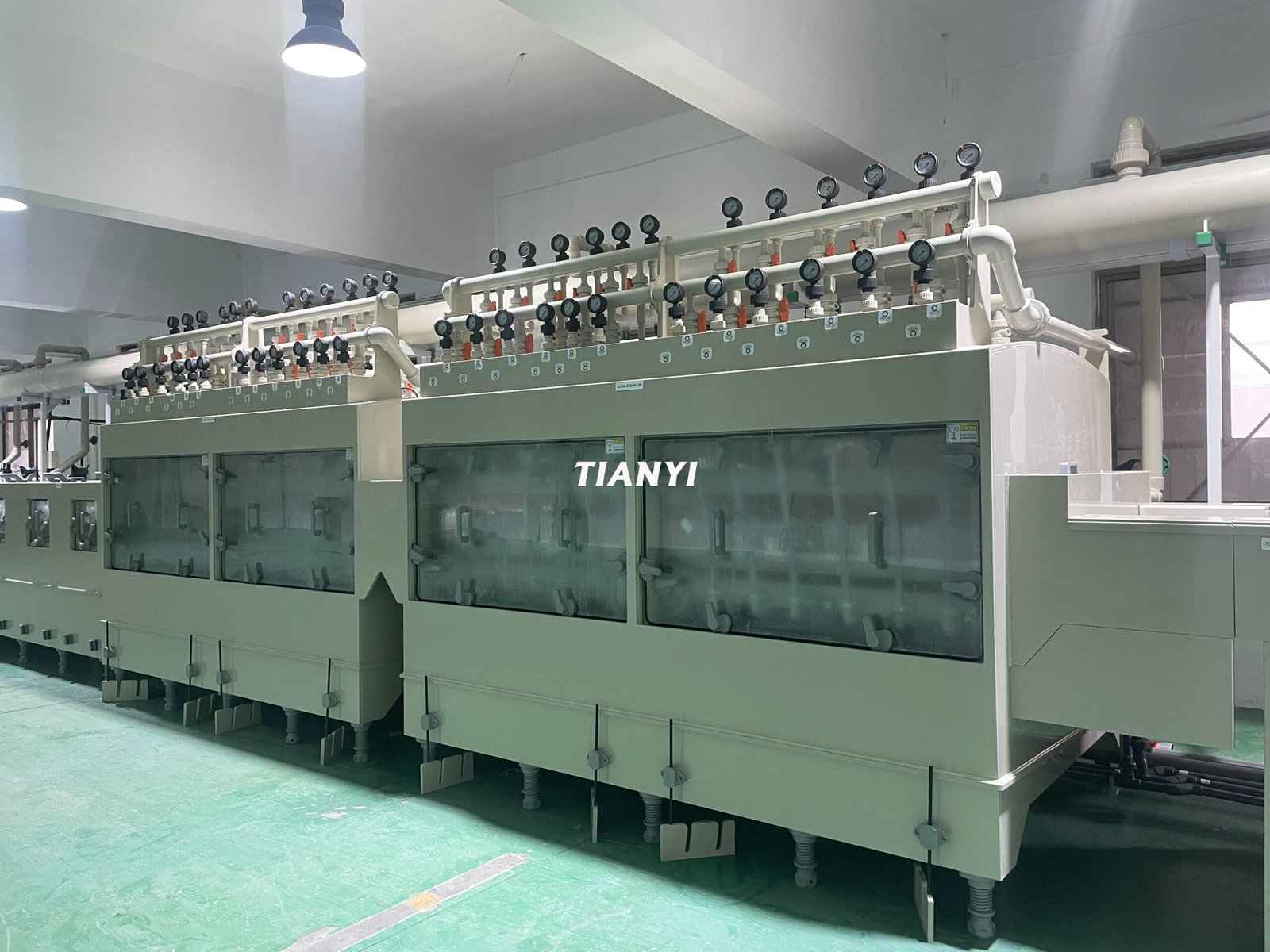

PCB Strip Etch Strip Machine
PCB SES line is waiting for you.
SES line is one whole set machine including film stripping, Etching and Tin stripping process, it removes a thin copper layer from the board surface for better circuit accuracy and plating adhesion.
Effective vacuum etching spraying length is 4meter, constructed with a corrosion-resistant body and advanced PP material. It could achieve 1.5-1.8 meter/min working speed for PCB etching production.

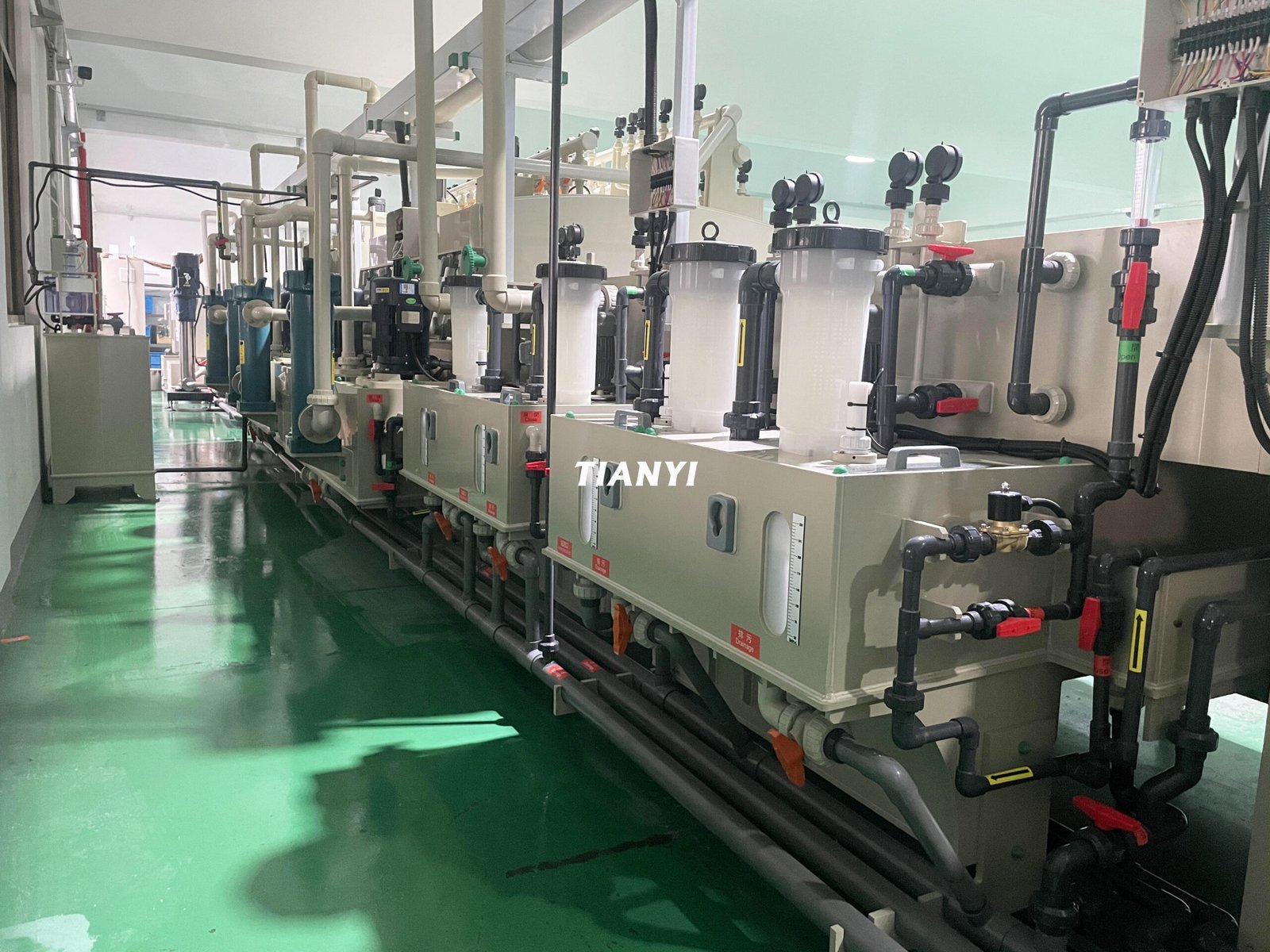

Auto dosing system: Film stripping(NaOH dosing system); alkaline Etching(SG dosing system); Tin stripping(SG dosing system)
