PCB OSP LINE
Specifications:
- OSP LINE process includes: Loading →Degreasing →Recycle washing (1/2) → DI water rinsing 1→ Micro etch→Recycle washing (3/4) → DI water rinsing 2→Air knife 1→Anti-oxidation → Air knife 2→Recycle washing(5/6/7)→DI water rinsing 3 → Squeezing → Cold blower → Hot air drying →

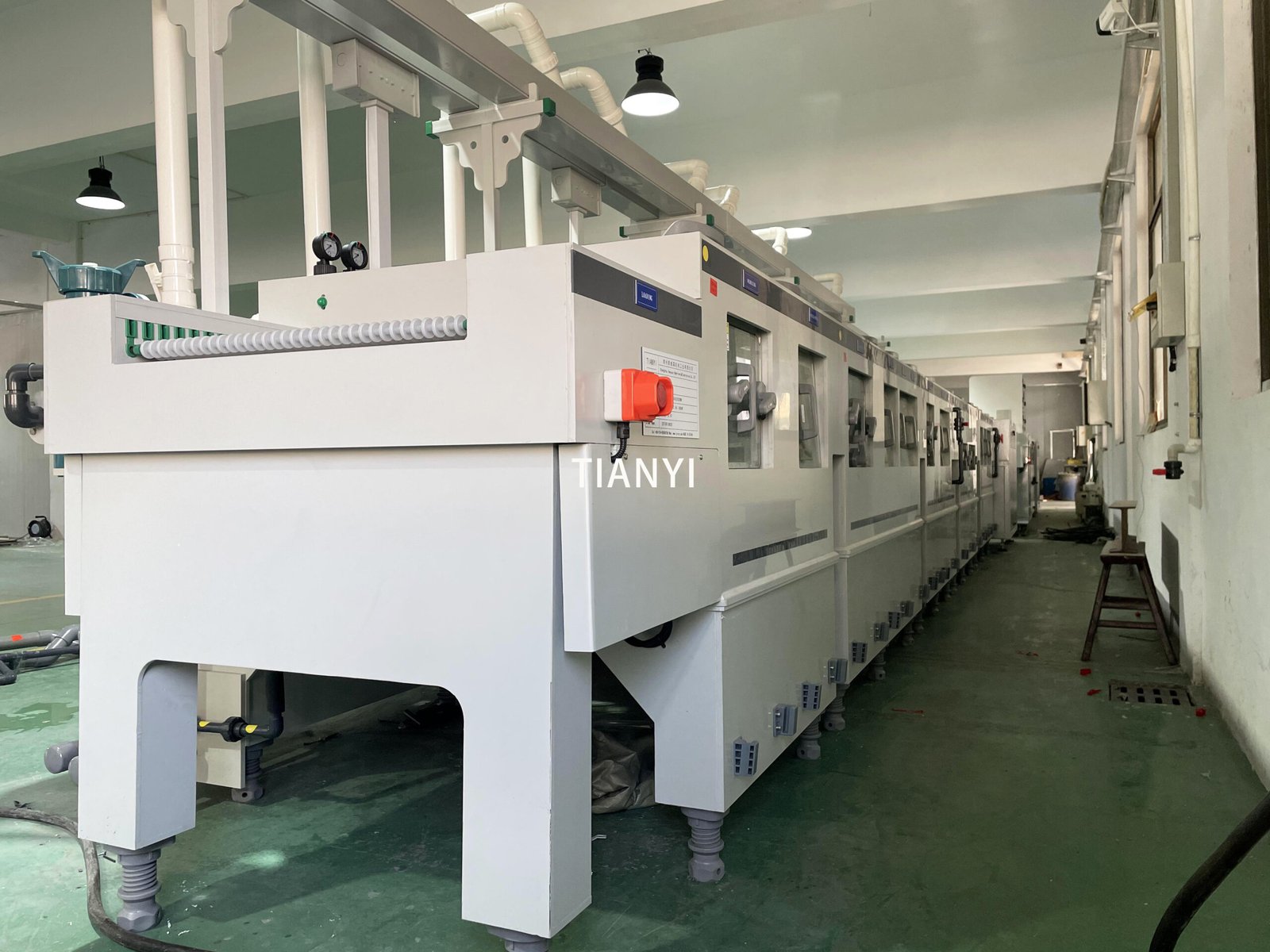

- Dimension: L11,165xW2150xH2500MM
- Effective working width: 740mm
- OSP heating/cooling: Electric heating with cooling coil

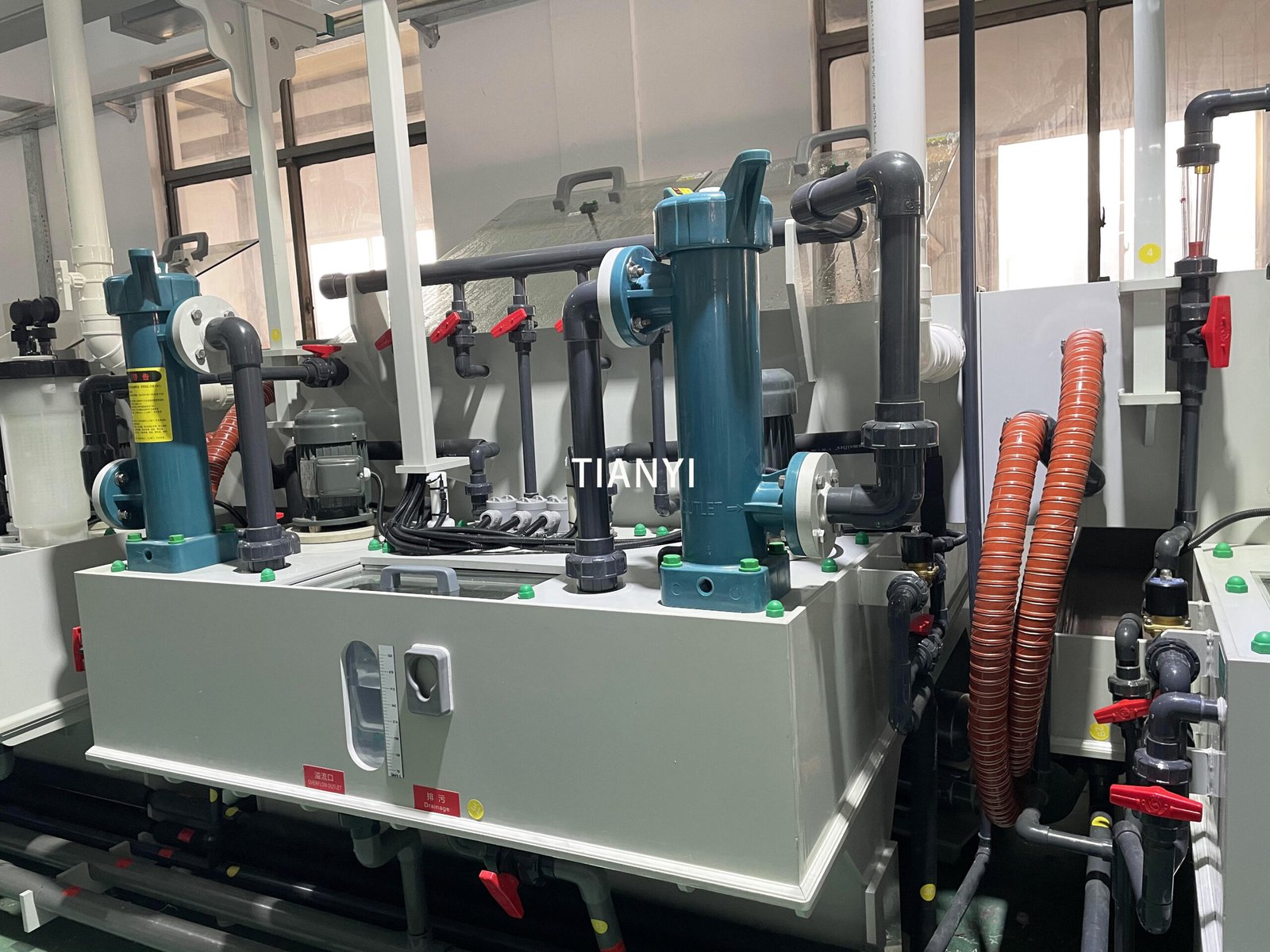

- OSP pump: 0.75KW
- Total power consumption: 64KW
- Guarantee: 1year
- Optional: Cooling chiller; waste gas scrubber(acid fume treatment)
+8615895086578
Mobile
sales@ty-cz.com
Description
PCB OSP line
PCB OSP line is waiting for you.
PCB OSP line is an automated surface treatment system used to apply an organic protective layer on copper surfaces.

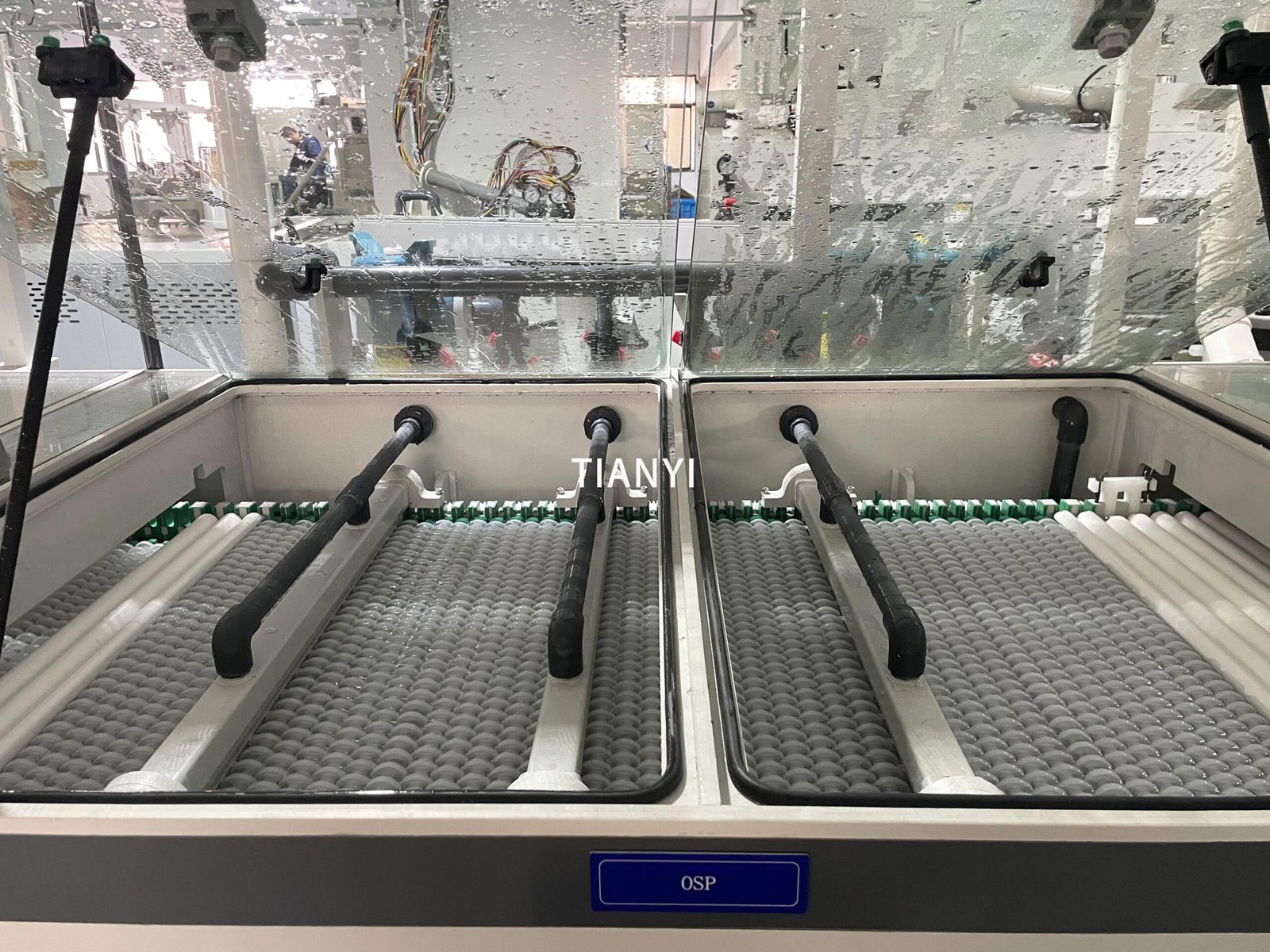

Effective OSP spraying length is 1.2 meter, constructed with a corrosion-resistant body and advanced PP material. It could achieve 1-1.2 meter/min working speed for PCB etching production.
