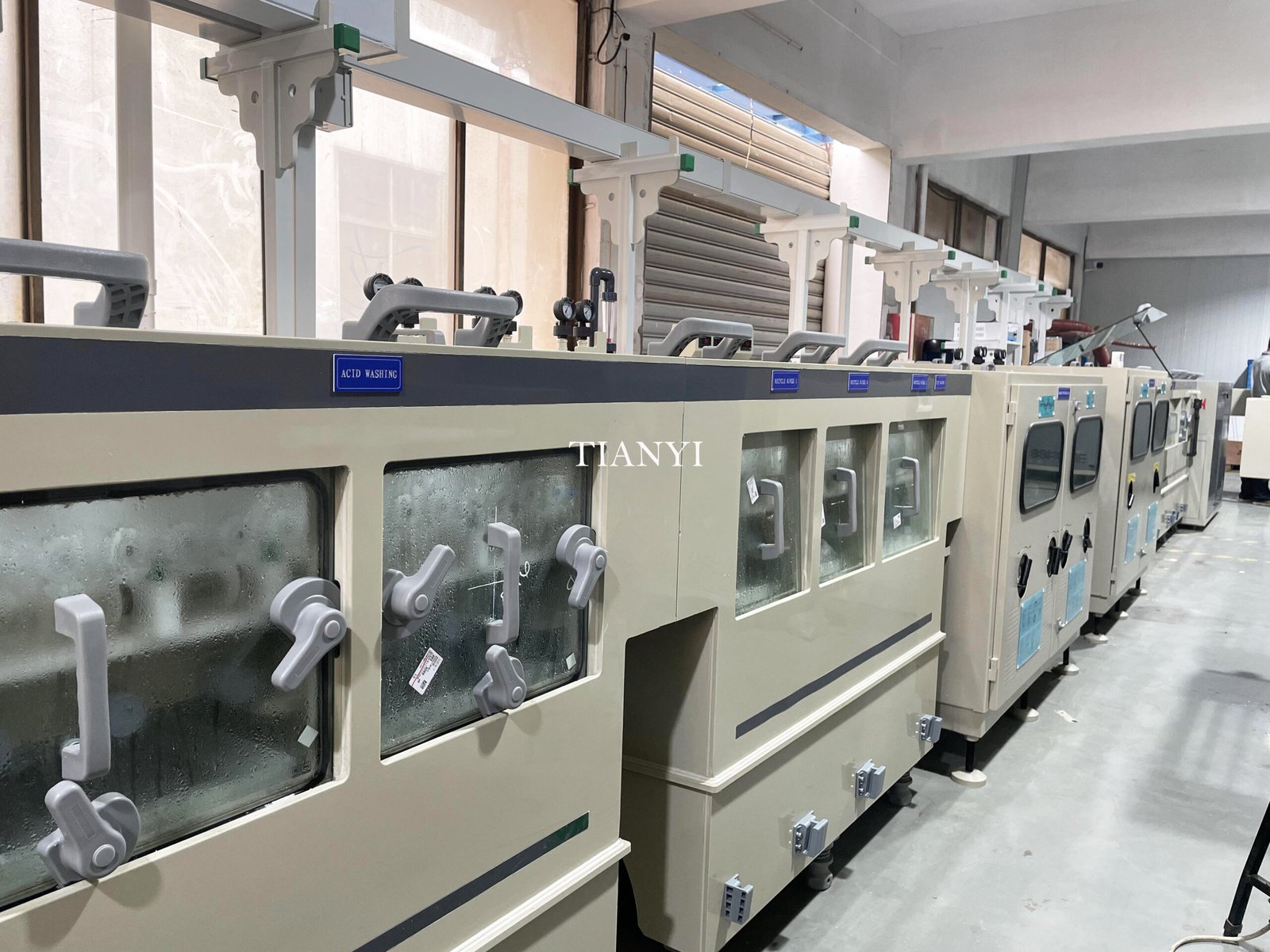

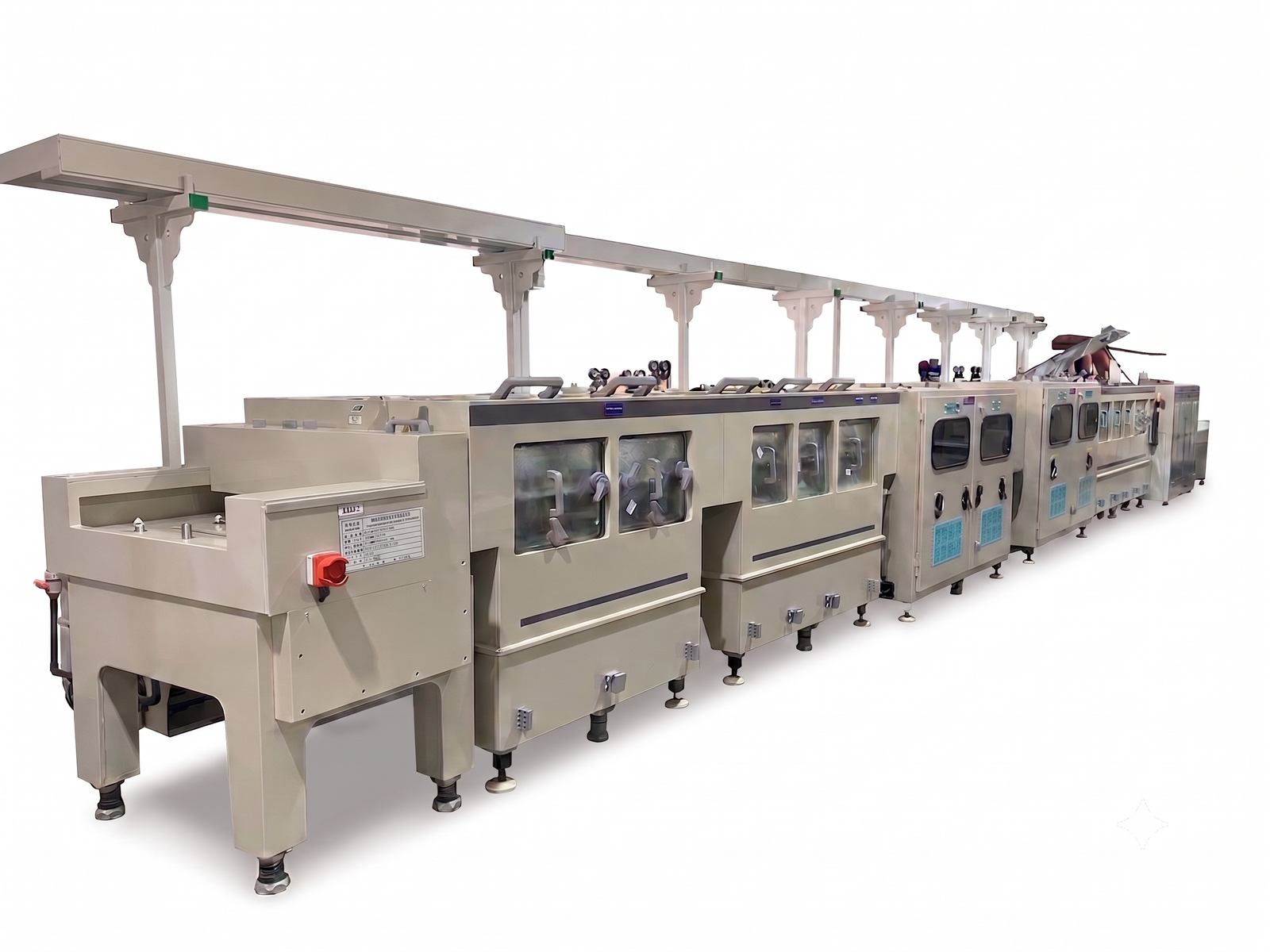

PCB PUMICE BRUSHING MACHINE
Specifications:
- Pumice brushingmachine process includes: Loading → Acid washing → Recycle water washing(1/2/3) → DI water washing1→Brushing→ Pumice brushing → Recycle water washing(4/5/6) → DI water washing 2→ Squeezing →Cold blower →Hot air drying →
- Dimension: L11,591xW2350xH2200MM
- Effective working width: 740mm
- Brushing heating/cooling: None
- Brushing motor: 1.1kW x 3 Grinding Wheel Motors
- Total power consumption: 45KW
- Guarantee: 1year
- Optional: Auto loader and Unloader, Copper filter unit
+8615895086578
Mobile
sales@ty-cz.com
PCB Pumice brushing machine
Pumice Brushing machine is waiting for you.
The brushing module is constructed with a robust stainless steel frame, other plastic part made of PVC sheets for excellent corrosion resistance.

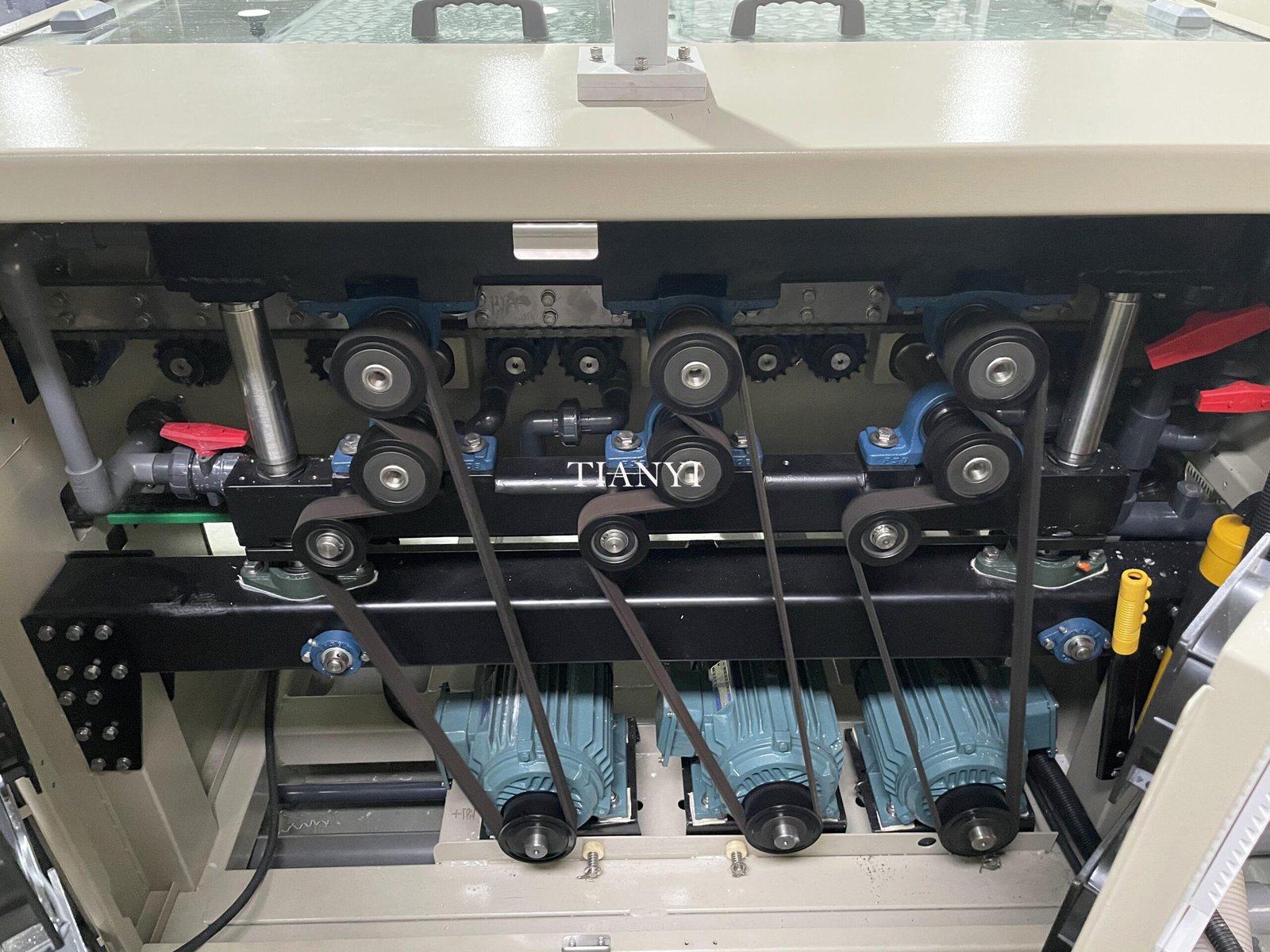

1: Pumice Mechanism:

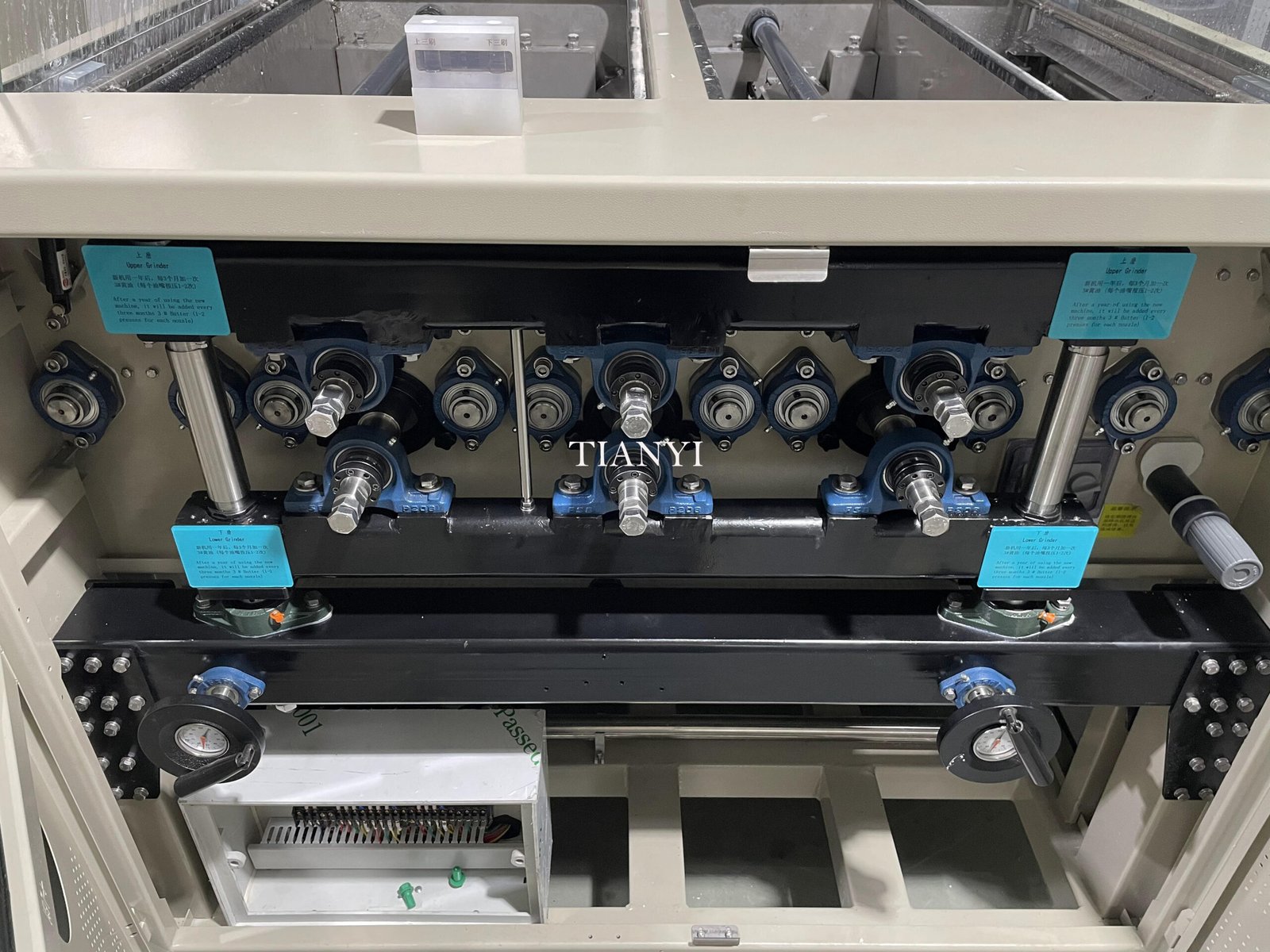

1-01 Brush Wheel Shafts: 6 Shafts, Material: SUS304
1-02 Brush Wheel Drive Motor Horsepower: 1.1kW x 3 Grinding Wheel Motors
1-03 Brush Wheel Replacement Notification: Mechanized (Micro-contact Switch)
1-04 Brush Wheel Pressure Adjustment Motor: AC Servo Motor (750W)
1-05 Brush Wheel Pressure Adjustment Principle: Automatic Voltage Adjustment Based on Motor Power

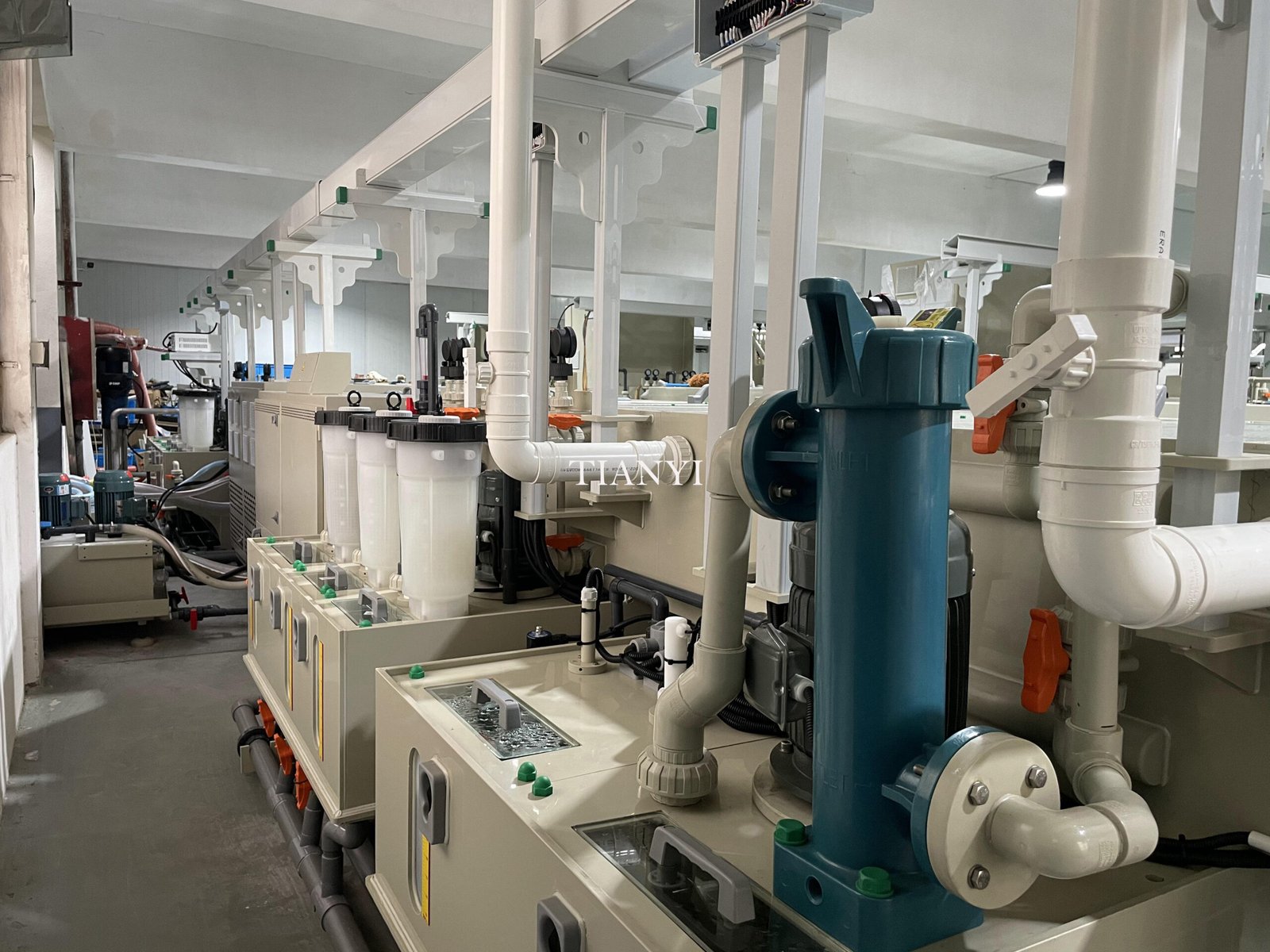

2: Spraying Mechanism:
2-01 Spray Nozzles: 5 upper nozzles, 2 lower nozzles (Plastic)
2-02 Equipped with a mixture tank and a cleaning tank.
3: Brush Wheel Dimensions
3-01 Acceptable Brush Wheel Type: No. 0 Wrap-around Special Brush
Special Specifications Negotiable. Two Brush Wheel Trial Available
3-02 Brush Wheel Grid: Outer Diameter: Ø76mmxØ100mmxD45mm
3-03 Brush Wheel Length 1300mm. Through-shaft drive is used throughout.
3-04 Abrasives are made of volcanic ash, primarily SiO2, and aluminum oxide, primarily Al2O3.
